SPICA STRIKE 63A/-70dB: CPL & Linky anti-wave filter

SPICA STRIKE 63A/-70dB CPL filter

Very high attenuation of interference and PLC.

Attenuates CENELEC A power line carrier currents (3 to 95KHz), in particular LINKY

Specifications:

• Operating voltage: 220/240V AC - 50/60Hz
• Nominal current: 63A
• Operating temperature: -25°C to +50°C

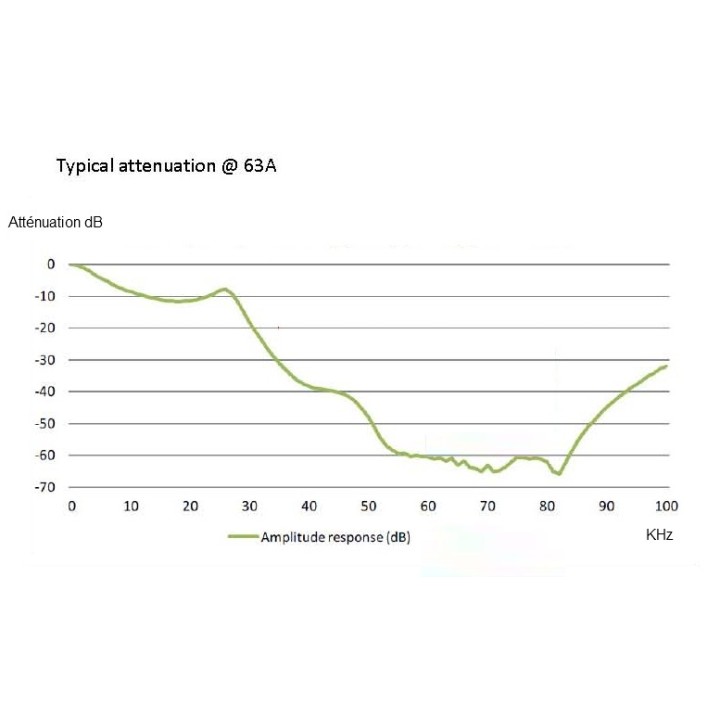

• Filter band: 55 to 80 KHz for attenuation between -60 and -65dB
• Power loss: less than 2W
• Insulation voltage: 6.0 kV
• Protection rating: IP20
• Surge protection: 230 J
• Overload: 1.6 x rated current for 2 hours
• Short-circuit current: 10 kA
• DI 2004/108/EC European Directive on Electromagnetic Compatibility (EMC).
• EN-50065-1 Specification for signalling on low-voltage electrical installations in the frequency range 3 kHz to 148 kHz.
• Humidity resistance: 90% without condensation
• IEC-60950-1 Information technology equipment.
• Manufactured in the EU.
• Installation: standard DIN Rail 35
• Connection: 6 to 35 mm² wires
• Dimensions: 158x90x65 mm
• Weight: 3.2 kg
