SPICA STRIKE 40A/-70dB for £340 + free shipping: Linky anti-wave CPL filter

€283.33

(Prices incl. VAT, except outside the EU)

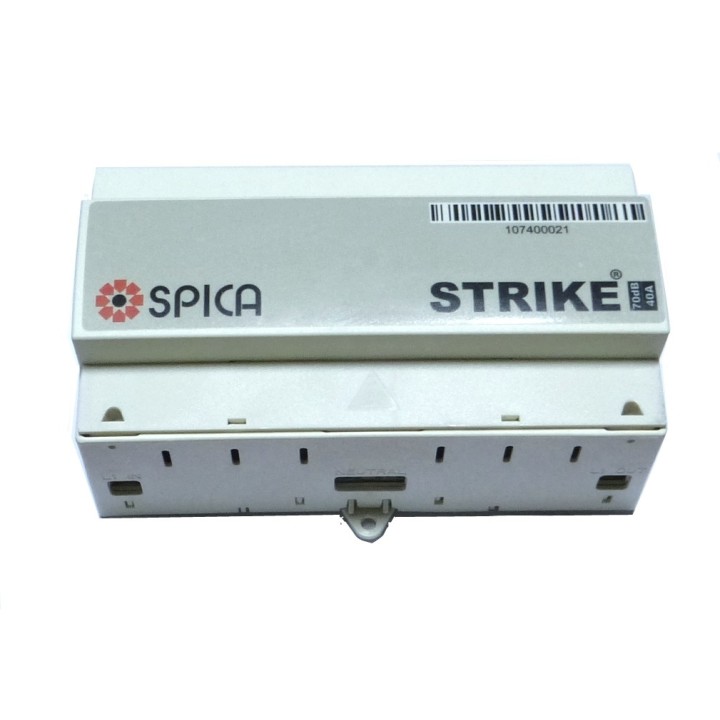

SPICA STRIKE 40A/-70dB CENELEC A-B-C-D: Linky anti-wave PLC filter

Linky PLC filter Very high attenuation of CENELEC A PLC interference (3 to 95KHz), particularly LINKY.

SPICA STRIKE 40A/-70dB CENELEC A-B-C-D: Linky anti-wave CPL filter

Very high attenuation of interference and PLC.

Attenuates CENELEC A power line carrier currents (3 to 95KHz), in particular LINKY

Specifications:

Operating voltage: 220/240V AC - 50/60Hz
Nominal current: 40A
Operating temperature: -25°C to +50°C

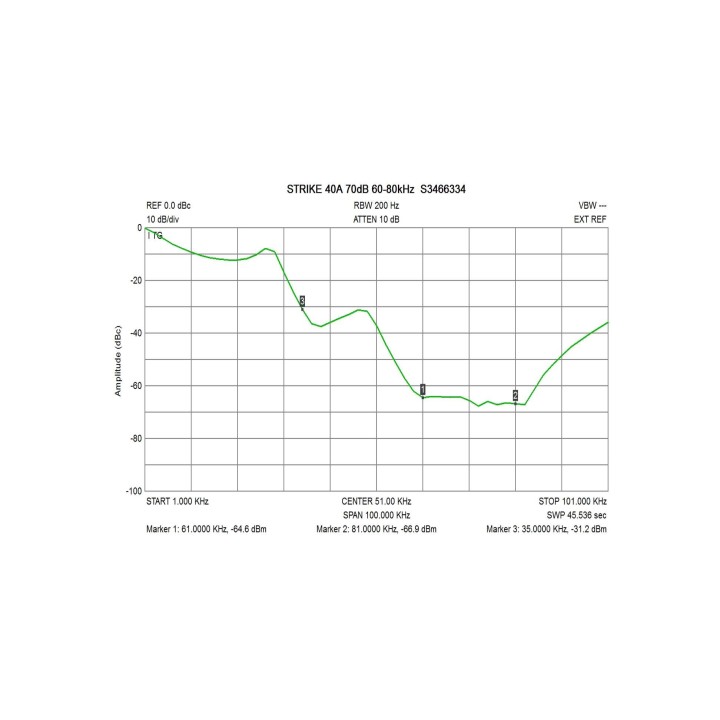

Filter band: 60 to 82 KHz for attenuation between -60 and -65dB
Power loss: less than 2W
Insulation voltage: 2.5 kV
Protection rating: IP30
Surge protection: 230 J
Overload: 1.6 x rated current for 2 hours
Short-circuit current: 10 kA
DI 2004/108/EC European Directive on Electromagnetic Compatibility (EMC).
EN-50065-1 Specification for signalling on low-voltage electrical installations in the frequency range 3 kHz to 148 kHz.
IEC-60950-1 Information technology equipment.
Manufactured in the EU.
Installation: standard DIN Rail 35
Dimensions: 158x90x65 mm
