MK20 Gigahertz for €573 including VAT + free shipping
(Prices incl. VAT, except outside the EU)
Set of two measuring devices
HF35c: High frequencies from 800 MHz to 2.5 GHz (with optional additional tolerance to 3.3 GHz),
ME3830B: Low frequencies; detection of electric and magnetic fields. Analysis of a frequency band from 5 Hertz to 100,000 Hertz.
Set of two measuring devices: HF35c: High frequencies from 800 MHz to 2.5 GHz (with optional additional tolerance to 3.3 GHz), ME3830B: Low frequencies; detection of electric and magnetic fields. Analysis of a frequency band from 5 Hertz to 100,000 Hertz
The set of two devices contains detectors for amateurs and offers analysis capabilities similar to those found in professional devices. It is the most popular kit among doctors and naturopaths who want to obtain a competent overview of the amount of pollution, but do not have the daily practice of measurement or the time to learn the technicalities of a professional device.
The HF35c:
| Frequency range: | 800 MHz - 2.5 GHz |
| Measurement range: | Power density: 0.1 - 1999 µW/m² |
| Accuracy: | Basic accuracy and linear tolerance: +/- 6dB Zero (offset) and rollover verification: +/- 9 digits |
| Sensor: | Logarithmic periodic antenna |
| Audio analysis: | Identification of the nature of pulsed radiation sources (mobile phones (GSM, UMTS/G3), cordless phones (DECT), WLAN (Bluetooth), air traffic control radars, etc.) by means of an acoustic signal proportional to the modulated frequency. |
| Power supply: | 9-volt alkaline manganese battery, average operating time 6-7 hours Low battery indicator on screen, automatic power-off function |
| Signal evaluation: | Display of peak values and average values (AVG) (switchable) |
| Other questions: | 2-year warranty |
| Weight: | 0.49 kg |
the ME3830B:
| Frequency range: | 16 Hz - 100 KHz (compensated, better than -2 dB) |
| Measuring range: | Magnetic flux density (one-dimensional): 1 - 1999 nT Electric field strength: 1 - 1999 V/m |
| Accuracy: | +/- 2%, +/- 20 digits @50/60Hz |
| Sensor: | E probe for measuring LF electric fields - B probe for measuring LF magnetic flux density |
| Audio analysis: | An acoustic signal proportional to the field strength, similar to a "Geiger counter effect", helps to identify areas of high exposure. |
| Power supply: | 9-volt alkaline manganese battery Average operating time of 24 to 36 hours "Low Batt." energy level indicator on the screen, automatic power-off function ("Auto-power-off") |
| Signal evaluation: | RMS |
| Several questions: | 2-year warranty |
| Weight: | 0.42 kg |

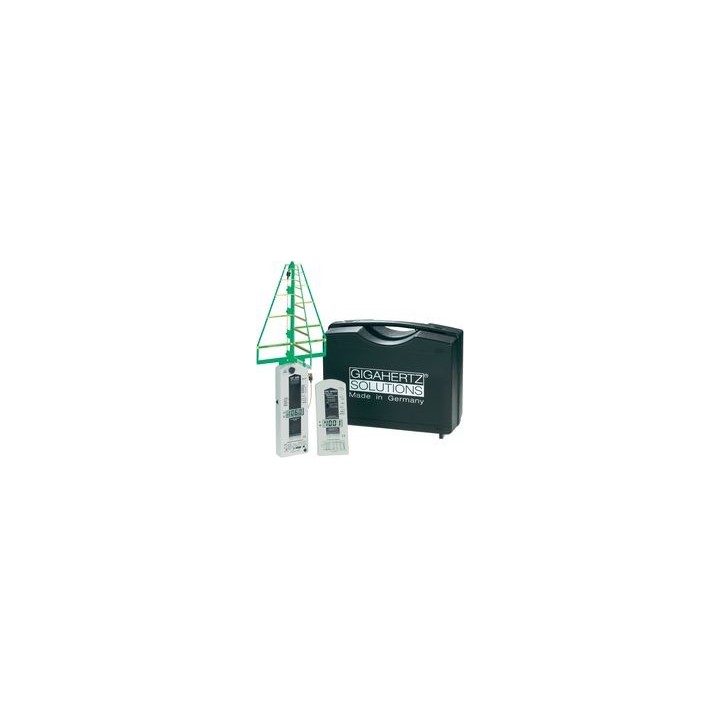

The devices are delivered in a plastic case lined with foam to ensure safe transport.
Contents of the box:
HF35c ME3830B incl. accessories carrying case-
ConditionNew
