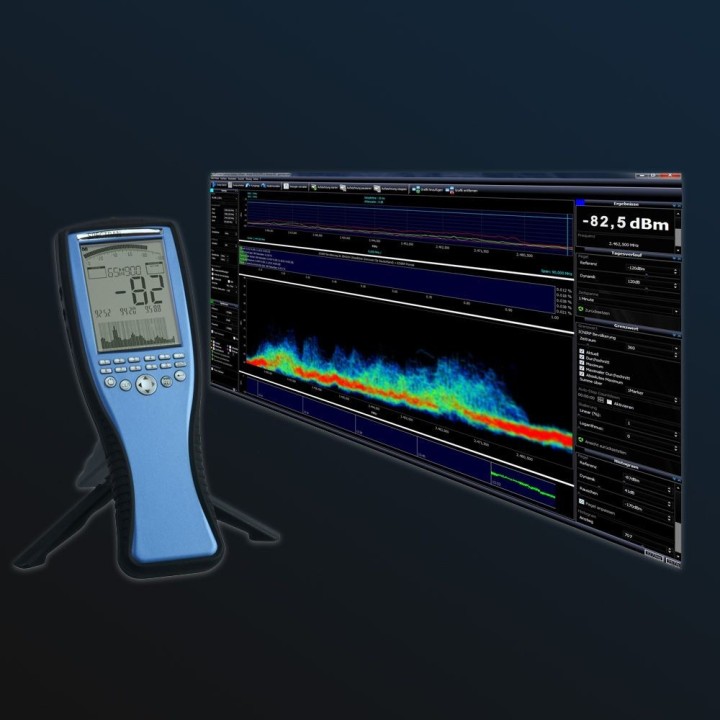

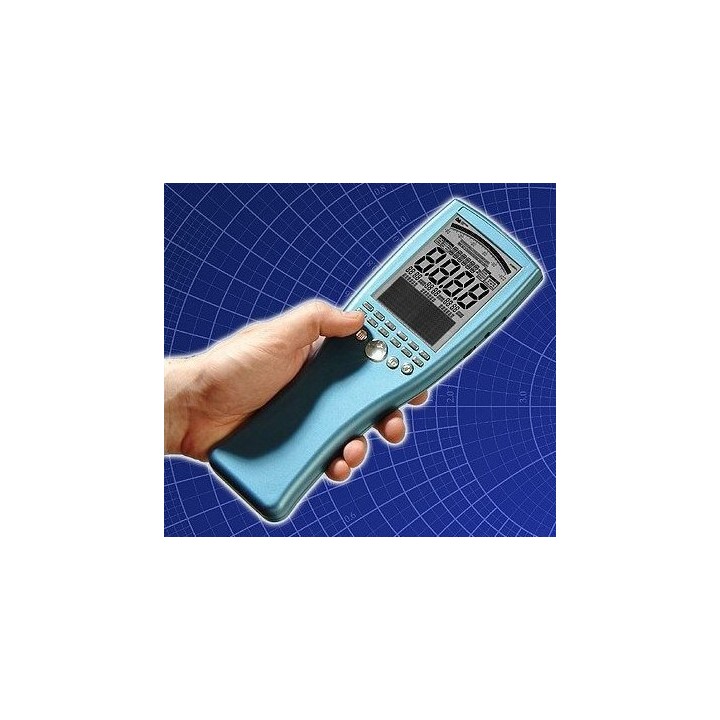

SPECTRAN HF-60100 V4 5G analyser detector (1MHz - 9.46GHz) Aaronia

SPECTRAN HF-60100 V4 5G spectrum analyser detector (1MHz - 9.46GHz) Aaronia is a detector and spectrum analyser for high frequencies 5G/4G/3G/2G, Wi-Fi, WLAN, radar, femtocell, DECT and Bluetooth.

These frequencies can be measured, analysed and heard, frequency by frequency. It complies with the TUV standard.

High-end device for frequency analysis

Technical specifications

• High-power DSP with RMS module
• AM, FM, GSM, PM demodulation
• 150 MIPS DSP CPU
• DDC filter digital converter
• Display of frequencies and signal strength
• Frequency scanning
• Limit value calculation in accordance with DIN/VDE 0848
• Frequency demodulation
• Audio output of selected frequencies
• Pre-programming for analysis ranges
• Type. Measuring range: -155dBm to 0dBm
• Maximum input level +20dBm
• Type. Accuracy: +/-1dBm
• EMC filters: 9kHz, 120kHz, 200kHz, 1.5kHz, 5MHz
• USB 2.0/1.1 interface output
• Hyperlog 60100 logarithmic antenna included
• Aluminium carrying case included
• Instructions in French
• -40dBm option.
• 9.4GHz option with 900 option

Application examples

• GSM/DCS/GPRS/UMTS 3G/4G/5G cellular telephone network
• DECT cordless telephone
• WLAN
• Wi-Fi
• Bluetooth
• Microwave (microwave oven leaks)
• Amateur CB
• Femtocell
• Tetra
• Amateur radio
• Radar
• WLAN 802.11a
• Satellite
