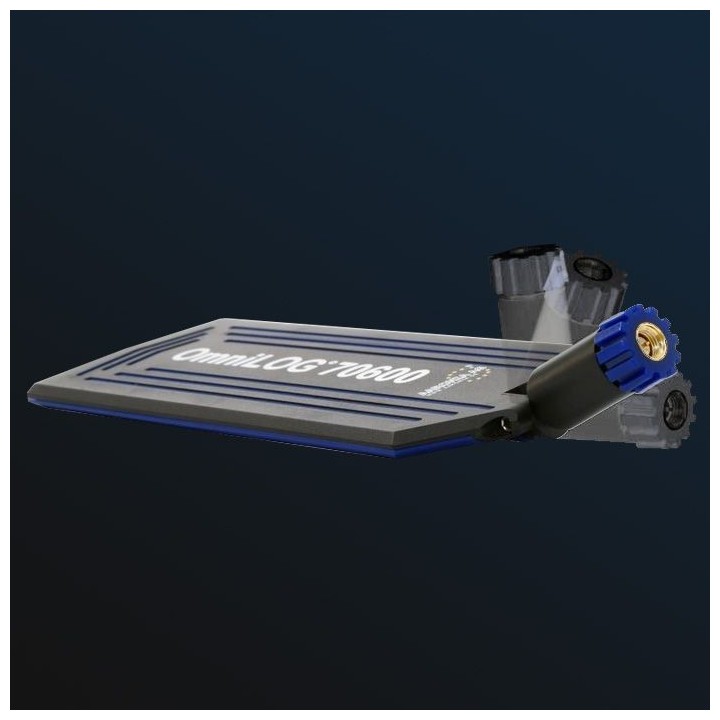

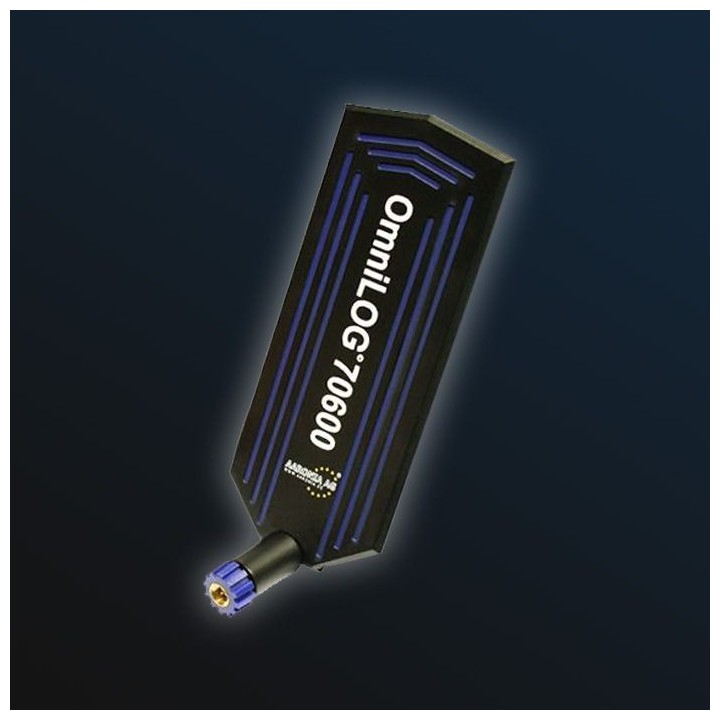

OmniLOG 70600 Aaronia antenna

OMNILOG 70600 Aaronia antenna for SPECTRAN HF-60100 from 680MHz to 6GHz

High-end isotropic antenna for high-frequency analysis of 2G/3G/4G/5G/Wi-Fi

Technical specifications:

• Omnidirectional isotropic
• 680MHz - 6GHz
• Linear polarisation
• Nominal impedance: 50 ohms
• Average return loss: -8
• Average standing wave ratio: 2.5
• Maximum gain: 6.5
• Average gain: 3.5
• RF connection: SMA (male)
• Temperature range: -20°C to +70°C
• Shock: 40G at 10msec
• Thermal shock: -20°C to +70°C: 10 cycles
• Dimensions (L/W/H): 210 x 20mm
• Weight: 54 g
