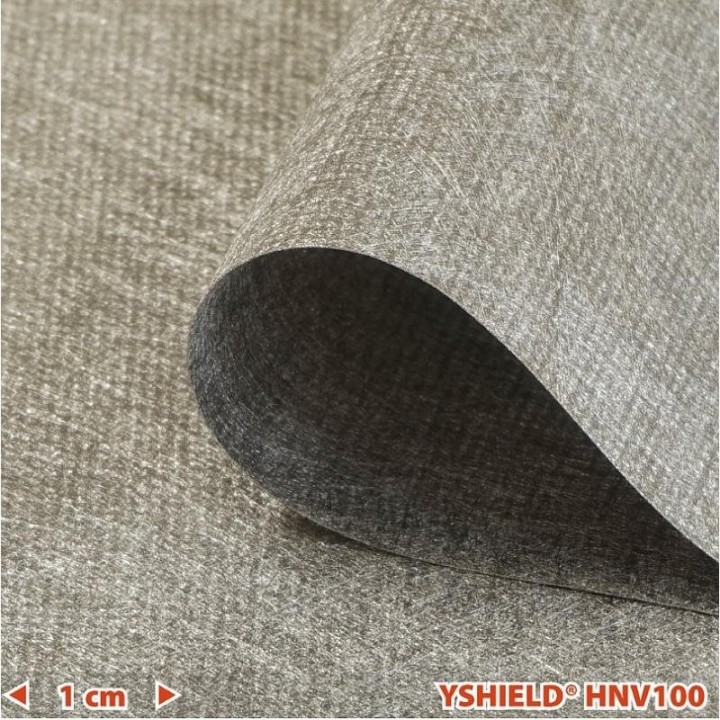

HNV100 fabric by the linear metre (0.9m wide)

HNV100 fabric (0.9 m wide) is a high-performance shielded fabric that blocks EMF and waves, effectively stopping high and low electrical frequencies.

- Sold by the linear metre -

It is ideal for use when affixed to walls, ceilings and floors to create anechoic chambers (rooms isolated from external electric fields and high frequencies).

It can be used as an underlay for wallpaper, onto which the final wallpaper can be applied, or directly as paintable wallpaper. This fabric can be stapled or glued. Its copper/nickel composition makes it resistant to oxidation. For maximum attenuation performance, it must be earthed.

It is best applied using DKL90 adhesive (coat the wall and the fabric with the adhesive, apply the fabric to the coated surface, then smooth the fabric to remove any excess adhesive).

Characteristics:

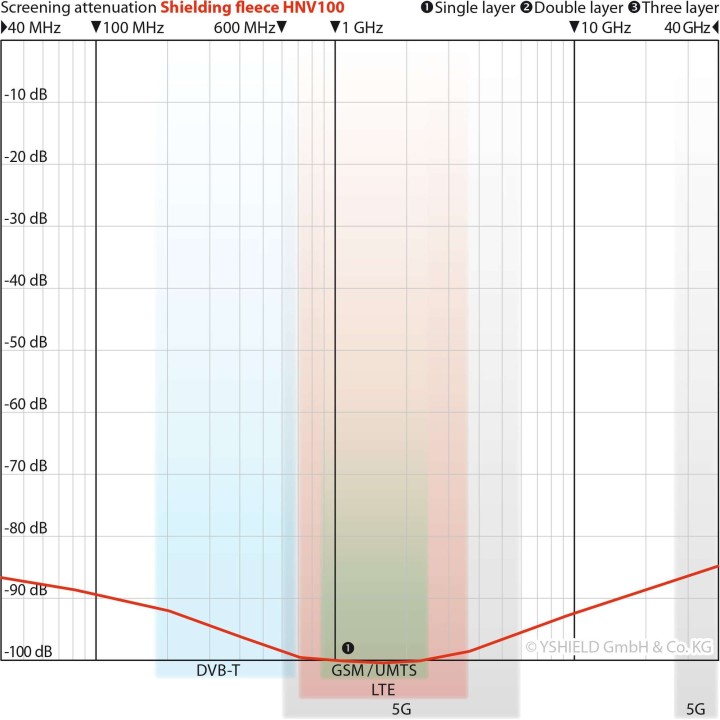

• 100dB attenuation at 1 GHz according to ASTM D4935-10, IEEE Std 299-2006, IEEEE Std 1128-1998, ASTM A698 / A698M-07 standards.
• Anti-corrosion
• Easy handling and use
• Antistatic
• Foldable
• Materials: nylon/copper/nickel
• Width: 0.9 m
• Thickness: 0.16 mm
• Approximate weight: 70 g/m²
• Colour: grey
• Tensile strength: 50 N/mm
• Conductivity: 0.01 ohm
• We accept no liability for damage caused to persons, animals or objects as a result of incorrect application, in particular earthing and electrical installation that does not comply with DIN 57100 / VDE 0100 standards. We recommend that the electrical installation and earthing be checked by a qualified electrician.
