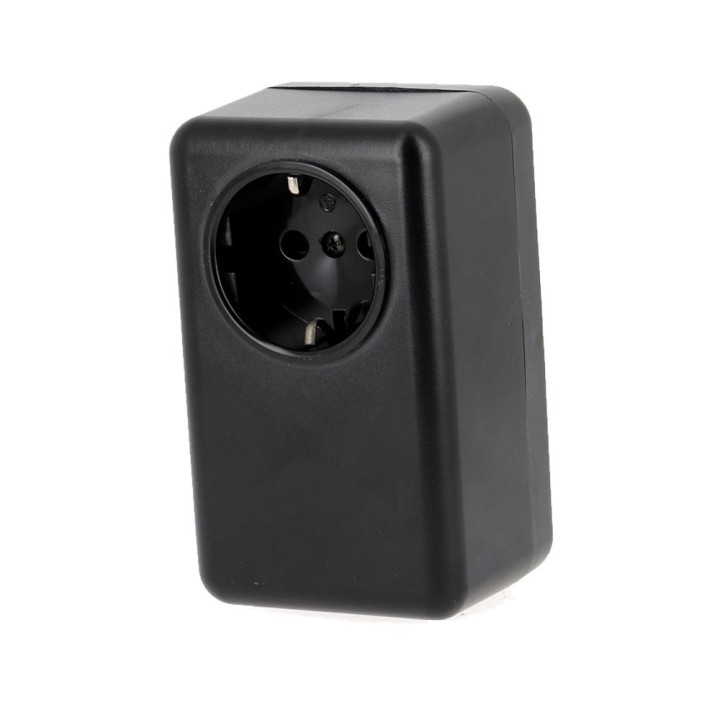

POLIER PANDA 15X2 filter: CPL linky filter and dirty electricity with 16A power socket

POLIER PANDA 15X2 filter: CPL Linky filter and dirty electricity with 16A power socket

Useful for removing electricity from the power line between the meter and the power line with this filter.

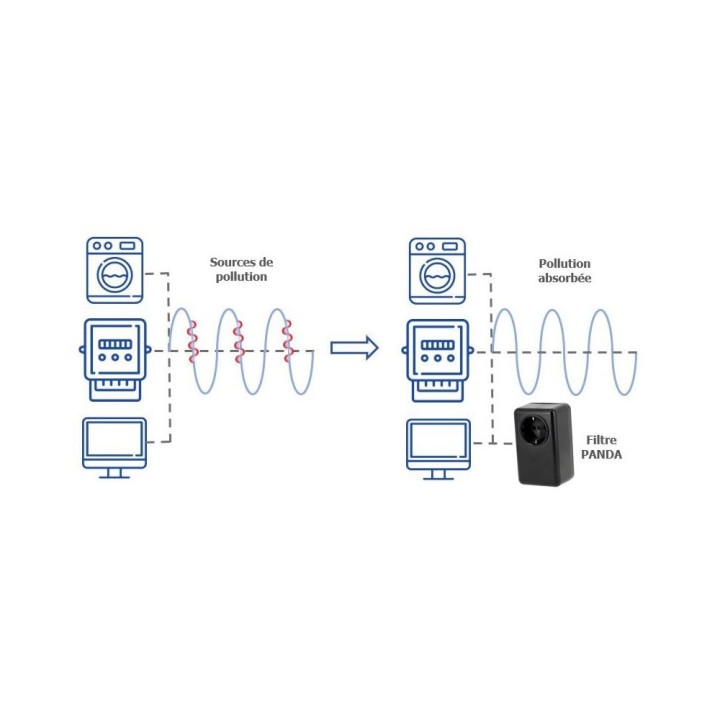

Connection and source of pollution:

The PANDA 15X2 filter connects to a 2P+T power socket.

Ideally, check the quality of the earth connection, which should be less than 10 ohms, using a T-OHME (earth connection meter).

Connect several filters to a power strip to increase the attenuation of dirty electricity, as close as possible to the source emitting the interference, which may be:

• Photovoltaic system inverters;
• Heat pumps (thermodynamic water heaters, air conditioning, swimming pools, etc.);
• Computer power supplies (switching) and other electronic device chargers;
• Current transformers;
• Energy-saving light bulbs, also known as compact fluorescent bulbs, and neon lights;
• Dimmers/light variators;
• Speed controllers (e.g. washing machines);
• Powerline communication (PLC) systems (used to transmit computer data over the electrical network);
• LINKY meters, which use the 30 to 95 kHz frequency band depending on the meter generation.

Technical characteristics:

• PLC filter: CENELEC A Linky, B, C and D band (EN 50065-1)
• Operating voltage: 220/230 V
• Plug format: European 2-pin + earth plug (Schuko)
• Maximum current: 16A
• Weight: 0.25 kg
• Mains frequency: 50/60Hz
• Operating temperature: -20/85°C
• Internal consumption: < 1 watt
• Dimensions: 110 x 65 x 95mm
• Fuse protection: 4A thermal
• Discharge resistance: 68 kΩ
• Possibility of continuing to use the socket: Yes (male + female socket)
• Faraday cage with earth connection: Yes
• Capacitor characteristics: 15μF class X2, very good quality
• Shielding around the capacitor to reduce electric fields near the filter
• Protection rating: IP30
• Certification: CE
• Warranty: 3 years
