Cornet ED85EXPlus BAT8 (5G) at €202 including VAT: high-frequency wave and low-frequency magnetic field meter

CORNET ED85EX Plus BAT8 (5G) is a detector that measures high-frequency waves and fields in the 1 MHz to 6 GHz band, as well as low-frequency magnetic fields from 50 Hz to 10 kHz (with audio demodulation (advantage: highly sensitive antenna)

High frequencies:

• Frequency range: 100 MHz to 8 GHz, including 5G.
• Very low power measurement thanks to the sensitivity of the BAT8 antenna (ideal for very low power measurements).
• High sensitivity: -60 to +5 dBm (14 mV/m to 26.2 V/m, 0.5 µW/m² to 1.8 W/m²)
• Dynamic range: 65 dB
• Display of the measured main frequency: from 100 MHz to 2.7 GHz (-35dBm minimum input signal required for this function to operate)
• Acoustic frequency detection function with volume variation
• Display of 8 coloured LEDs for exposure assessment (New and highly appreciated on this new model in the Cornet range: adjustable sensitivity of this parameter to German habitat biology values!)
• Programmable audible alert in dBm, emitting beeps and the sound of the recognised main source
• High frequency measurement error rate: +/- 3.5 dBm.
• The BAT8 antenna allows for greater detection accuracy and sensitivity, as does the LPDA antenna.

Low-frequency magnetic field (2 measurement scales):

• LF600 mode: 50Hz to 10 kHz from 0.1 µT to 60 µT (1 mG to 600 mG).
• LF30 mode: 50 Hz to 1 KHz from 0.01 µT to 1 µT (0.1mG to 10 mG).
• Low-frequency magnetic field measurement error rate: 20%, with Max function and measurement hold function.

Technical specifications:

- Broadband detector from 1 MHz to 10 GHz

- Black wire antenna (supplied): 1 MHz to 6 GHz band

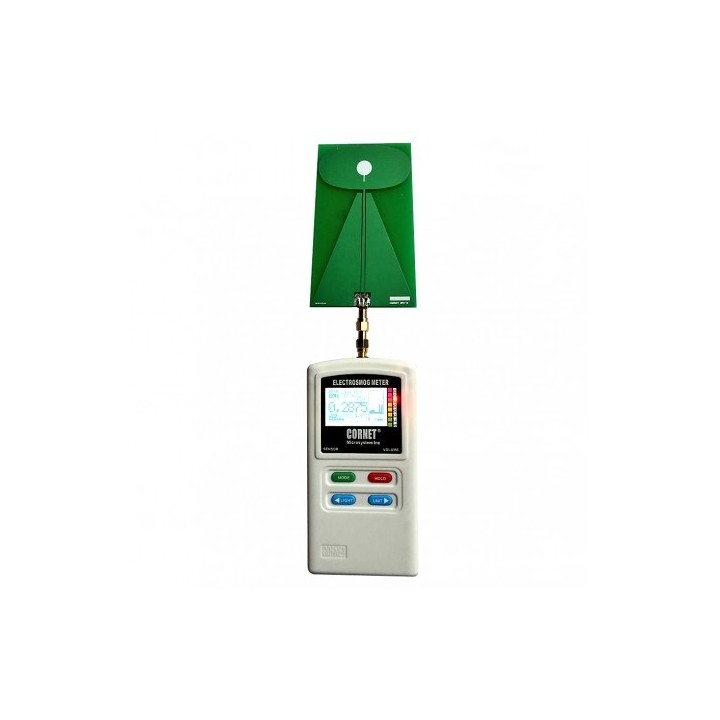

- BAT8 antenna: 400 MHz to 6 GHz band

- LPDA antenna (optional): 1.8 GHz to 10 GHz band

- Sensitivity: -55 dBm to +5 dBm (12 mV/m to 6.8 V/m) from 100 MHz to 3 GHz

- Frequency demodulation for audio monitoring of waves with volume control

- Data recording via USB port possible

- Dynamic range: 60 dB

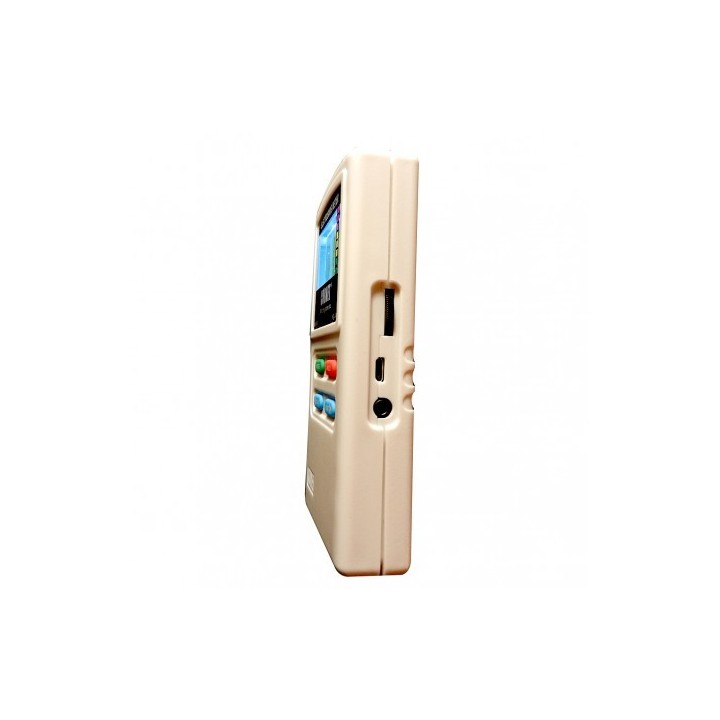

- SMA port, USB port, 3.5 mm audio jack output

- Signal type: Analogue RF (AM/FM), digital RF GSM, TDMA, CDMA, PCS, Wi-Fi)

- Display type: Digital LCD screen for spectrum analyser and broadband power level, histogram

- Units of measurement: V/m, dBm, µW/m², mW/m², W/m², µT, mG

- Connector input impedance: 50 ohms

- Measurement acquisition speed: 10,000 samples per second (10,000/sec).

- Display update rate: 2/sec.

- Functions in English: Mode, Hold, Light, Unit, Max, Average, Sound signature, Alarm, Frequency.

- Functions in French: Mode, Hold, Lighting, Units, Maximum, Average, Sound Signature, Alarm, Frequency.

- Mode: Instantaneous broadband measurement, peak power storage.

- Supplied: CORNET ED88Tplus with BAT8 antenna

- Battery life: 20 hours

- Dimensions: 137 x 71 x 25 mm

- Power supply: 9V battery
