NFA400 at €1,700 including VAT + pole + case + free shipping

This high-end NFA 400 1D analyser features a data logger.

Overall measurement of the frequency band from 5 Hz to 400 KHz or separately: - 16.6Hz, 50/60Hz, 100/120Hz, 150/180Hz, < 2kHz and anything above 2 kHz.

Technical specifications:

• Scales: Electrical: 0.1 to 1.999 V/m

• Magnetic: 1 to 19.999 nT (nano tesla) Actual 1D measurement of alternating electric fields in V/m with earth potential or off-potential with an optional insulating rod (PM4's) or on the optional insulating support (PM1)

• Real 3D measurement of alternating magnetic induction fields in nT or mG Measurement of body potential in mV or volts (capacitive effect of the body in electric fields)

• Directional measurement possible on the X, Y, Z axes Extended frequency analysis optimised for FFT signals above 32 KHz

• Extended measurement of peak values and true RMS measurement Voice recording of your comments in the instrument (.wav file) and correspondence in the graph obtained with the NFAsoft software for PC

• Overall measurement of the frequency band from 5 Hz to 1 MHz (All3D) or separately: - 16.6Hz, 50/60Hz, 100/120Hz, 150/180Hz, <2KHz and everything above 2KHz

• Free update of NFAsoft software

• Rechargeable Li-Ion battery for more than 48 hours of continuous operation.

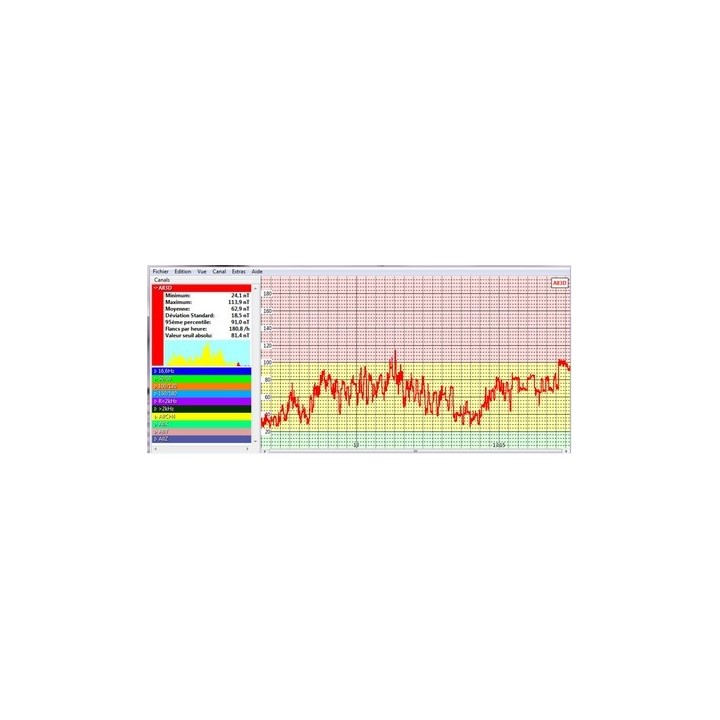

• NFAsoft software for statistical function analysis (e.g. 95th percentile), oscilloscope function, experimental analysis of the "dirty electricity" phenomenon (contamination of electrical networks and harmonics), graph of the different recorded frequency bands

• Ability to record locations over several weeks Measurement of nine points on a bed and six points on a workstation to obtain a 2D graph of the surface

• Possibility of recording radiation in a neighbourhood by car or bicycle with a GPS data logger (accessory not included) to view the graphs in Google Earth®!

• Compensated error: -2dB

• High-frequency fields measured with the HF59B can also be recorded via a connection cable from the DC output socket to the AC/DC input of the NFA-1000 (available as an option, ref: KAB0048)

• Numerous accessories: insulated pole, PM1 insulated bracket, TCO3 probe, magnetostatic probe (in development), electrostatic probe (in development), etc.

Options

• It can also be equipped with numerous accessories:
• K5 carrying case
• TCO3 probe,
• PM5S adapter for attaching the measuring device to an insulating pole to take measurements outside the potential,
• ES-NFA magnetostatic probe,
• ES-NFA electrostatic probe,
• silicone protective cover, etc.
