NA5 Comfort 16A Gigahertz at €170 incl. VAT - Automatic field switch

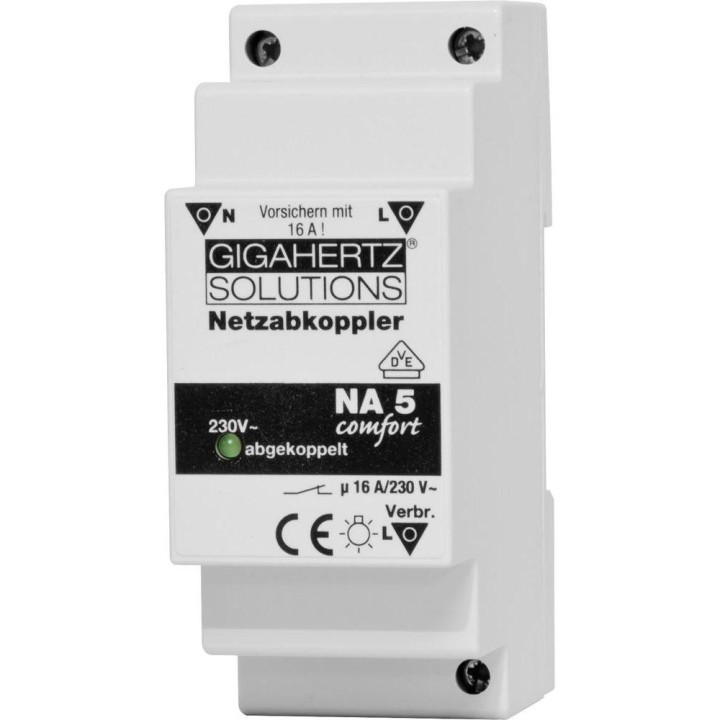

NA5 Comfort 16A automatic field switch Gigahertz Solutions

The AFC disconnects the electrical circuit when there is no current consumption.

It restores the voltage as soon as it detects a demand for electrical consumption.

The AFC is installed in the distribution box, after the fuse cut-off or circuit breaker for the circuit to be protected.
The same AFC can protect one or more electrical circuits.

Technical data:

• Current: 16 A
• Monitoring voltage: 230 VDC max. 8 mA
• Single-pole Width: 2P or 35 mm
• Weight: 108 grams
• Size: 35 x 70 x 76 mm (W x H x D)
• Sensitivity: 0-3 mA
• Cut-off delay: 3 s
• Connection delay: 0.1 s
• Indicator lights: Green = circuit protected / Red = circuit under load
• Comes with a control night light that plugs into the room concerned and turns off when you turn off the light or switch off your bedside lamp, for example, or stays on if you have forgotten to switch off a power consumer.
• VDE certification (German Federation of Electrical Engineering Industries)

Application and choice of RCD:

- 1 IAC per electrical circuit from the electrical supply panel with amperage greater than or equal to the amperage of the electrical circuit

- 8 sockets or lights per electrical circuit

- For a lighting circuit, except for low-energy or LED bulbs, use a 10A RCD, type NA1 Comfort Gigahertz Solutions

- For a lighting circuit with low-energy or LED bulbs, or for a circuit with electrical sockets, use a 16A RCD, type NA7 Comfort Gigahertz Solutions

- For a circuit with electric shutters or electric doors, use an Ultima 8 Gigahertz Solutions
