ZENPROTECT BIOVOLTS solo CPL filter €715 incl. VAT + free shipping

LINKY ZEN PROTECT BIOVOLTS PLC filter

Filters PLC and LINKY carrier currents and their harmonics in the electrical circuit, i.e. 93% of radiation (-45dB on CENELEC bands A, B, C, D (from 10 KHz to 2 MHz)

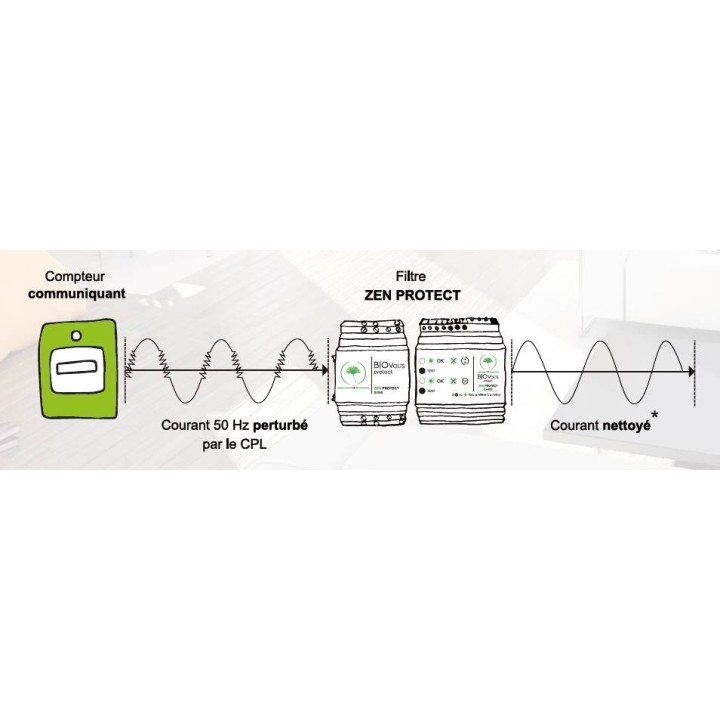

The Zen Protect filter acts as soon as the current enters the private part of the electrical installation to clean up additional superfluous frequencies above 10 kHz that are not useful for the operation of electrical appliances. It thus protects the installations and occupants of the premises from radiation due to these "parasitic" frequencies.

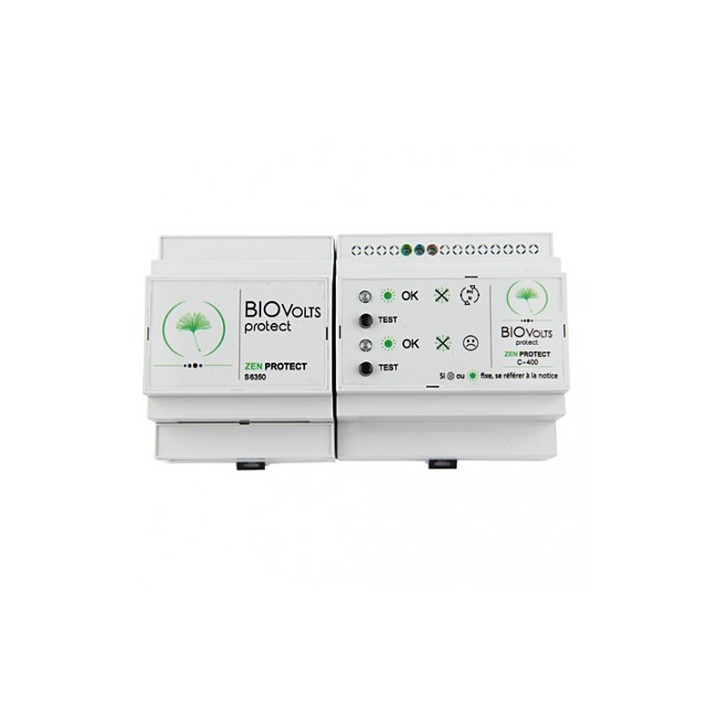

The ZEN PROTECT filter occupies 10 spaces (modules) of 18 mm in a standardised electrical panel. 4 modules for the S6350, 5 for the C400 and 1 for the associated C10 circuit breaker. The filter components can be separated to fit into an existing panel, but this is not recommended as it will reduce the filter's effectiveness. We recommend using a ZEN PROTECT solo version kit with the panel provided.

We recommend using a 16 mm² SHIELDED PHASE WIRE for filter installation.

Technical specifications:

• Installation between the electricity meter/circuit breaker and the electrical distribution panel.

• Voltage: 0 to 240 V AC - 50/60 Hz

• Current: 1 to 63 A at 40°C max

• Operating temperature: 0°C to 60°C max
• Inductance L: 63 µH (micro Henry)
• Capacitance C: 40 µF (microfarad)
• Cos Phi: 0.98 at 15 A - 0.99 from 21 A
• A ZEN PROTECT filter reduces radiation by 93% (dividing the PLC signal level by 15).
• CENELEC A standards
• Installation instructions
• Made in France, 2-year warranty
• Installation by an electrician recommended

Contents of the box:

• 1 S6350 module
• 1 C400 module
• 1 C10 circuit breaker
