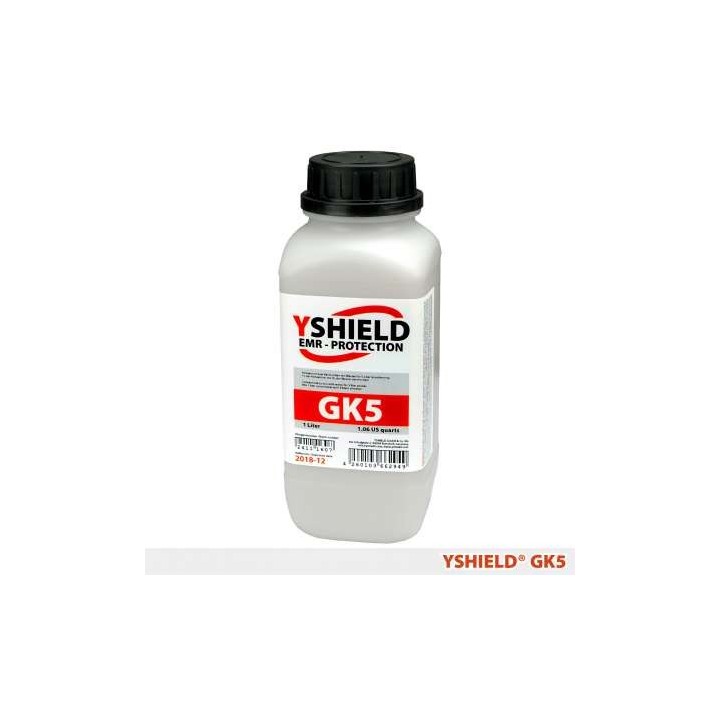

GK5 Yshield concentrated primer

€15.00

(Prices incl. VAT, except outside the EU)

GK5 Yshield concentrated primer.

Designed for preparing surfaces to be painted with anti-wave paints. 1 litre of concentrate for 5 litres of diluted paint.

GK5 Yshield concentrated primer.

Designed for preparing surfaces to be painted with anti-wave paints. 1 litre of concentrate for 5 litres of diluted solution.

Preparation:

Dilute 1 litre of GK5 in 5 litres of water.
Use within 48 hours at a minimum temperature of 5°C.

Characteristics:

Composition: Dispersion acrylics, additives, preservatives (MIT, BIT)
Transparent
Surface coverage per litre of concentrate: 25 to 35 m².

YShield® wall paints protect your home from external electromagnetic fields, whether high frequency (relay antennas, Wi-Fi, Wimax, satellites, radar, DECT, wireless telecommunications networks, microwave repeaters, etc.) or low frequency (EDF electrical power lines, etc.).

They create a shielded enclosure (Faraday cage) that virtually blocks all external electrosmog (electromagnetic pollution) from entering your home.

This paint is certainly the most effective currently available. Unlike other paints, these paints do not use metal compounds, but only carbon, which acts as a conductor.

The paint therefore does not oxidise and, more importantly, it prevents excessive re-emissions in the home from sources inside the home that can emit electromagnetic fields.

They are used for exterior application to the home. They are environmentally friendly and healthy, as they do not use solvents or toxic chemical additives. They are applied like conventional paints.

They are also used for shielding:

Strategically sensitive areas where computer and frequency data must not be leaked to the outside world.
Electronic components to prevent high-frequency interference between multiple components and enable HF compatibility.

Features:

Resistant and tear-resistant
Binder: Synthetic
Handling and application comparable to standard paint
Washable with water
Antistatic
Highly resistant to mould
Application surface: Plaster, cement, cob, existing paint. Surfaces must be degreased and carefully prepared to remove porous roughness. A primer may be necessary
Application technique: brush, paint roller, paint sprayer
Application conditions: above 5°C, dry weather, drying time = 12 to 36 hours depending on temperature. Ideally, YShield® paints should be covered with 2 coats of water-repellent latex paint outdoors and 2 coats of latex, vinyl or acrylic paint indoors. After shielding rooms with YShield® paint, an electrical differential must be installed to avoid any risk of overvoltage. The electrical current must be turned off in the home before any work with YShield® paints.
Earthing: YShield® paints must be earthed using YShield® earthing kits for exterior and interior paints.
We accept no liability for damage caused to persons, animals or objects by incorrect application of the paint, in particular grounding and electrical installation that does not comply with DIN 57100 / VDE 0100 standards. We recommend that the electrical installation and grounding of YShield® paints be checked by a qualified electrician.
Attenuation efficiency: - - - High frequencies: -45dB for 1 litre per 3.75 m² and -38dB for 1 litre per 7.5 m² - - - Electrostatic fields: 99% attenuation - - - Electric fields, low frequencies: 99% - Ideal for attenuating future applications in the telecommunications industry in the high frequency range (excellent attenuation up to 18 GHz)
Solvent: water
Base: carbon
Binder: synthetic
VOC: 1 g/L
Adhesive strength: 3.3 N/mm²
Viscosity: 2000 mPa
Density: 1.25 kg/L

Emissions concerned:

GSM/DCS/GPRS/UMTS/4G cellular telephone network
DECT cordless telephone
WLAN
Wi-Fi
Bluetooth
Microwave (microwave oven leaks)
Satellite transmission
Radar
WiMAX
Radio
Tetra
CB
50Hz electrical current

YShield® paints have various applications:

Military: shielding of highly confidential sites to prevent data transmission hacking.
High-tech industry: shielding electronic components to resolve electromagnetic compatibility issues
Medical: shielding of rooms or specific medical equipment with high electromagnetic radiation to protect healthcare professionals and patients. YShield® paints offer a range to suit all needs.

YShield® paints contain no toxic solvents, plasticisers or toxic components, only very small amounts of initial volatile organic compounds in order to comply with the most stringent ecological housing standards. The attenuation graphs are certified by the University of Munich of the German Armed Forces.

Shielding of glass surfaces:

Glass surfaces must also be shielded so that high and low frequencies cannot penetrate through them. We recommend using HFshield fabric for high-frequency attenuation and low-frequency electric fields. Description of YShield® grounding kits:

Grounding Kit (ES):

All painted surfaces must be grounded. This kit is specially designed for grounding YShield® paints.

Interior connection tape (EB):

This connecting tape ensures that all surfaces painted with YShield® paints inside an enclosed room remain earthed in the event of a crack. It is self-adhesive. Length: 10 m, width: 2 cm, thickness: 0.06 mm.

External connection tape (LB):

This connecting tape ensures that all surfaces painted with YShield® paints outside a home or building are earthed in the event of cracks. It is tear-resistant and weatherproof. Length 10 m, width 17 mm, thickness 0.8 mm, hole diameter: 5 mm.

Examples of application:

1 - Interior painting:

Shielding a room to attenuate HF and VHF (high and very low frequencies) from a relay antenna. High frequency measurement before applying YShield® paint: received power = 8.2 µW/m2
