• Gaines blindée flex a ray ICTA
  • Gaine blindée ICT 16mm + fil semi conduc. - Flex a Ray + port offert

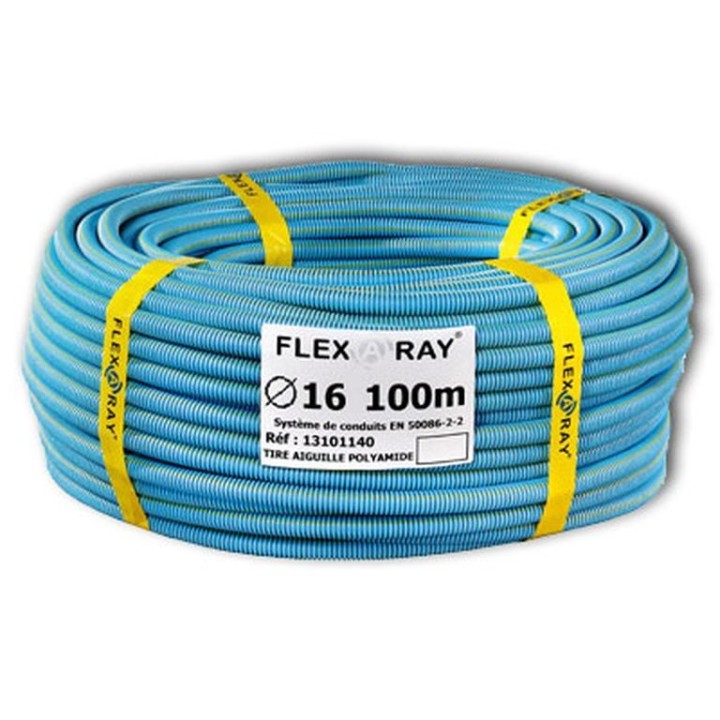

ICT 16mm armoured sheath + semi-conductive wire - Flex a Ray

€258.33

(Prices incl. VAT, except outside the EU)

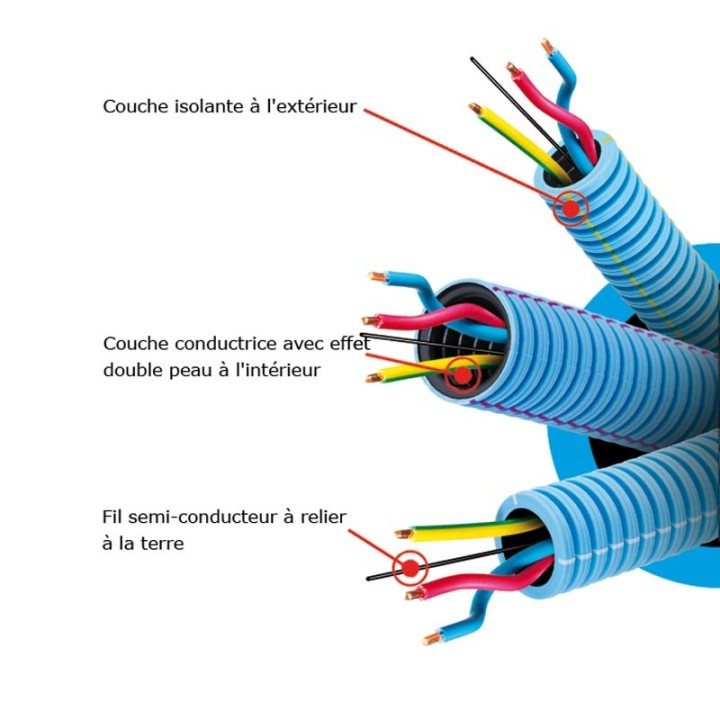

Flex-a-ray conduits provide excellent attenuation of electric fields. They contain a layer of electrically conductive composite material, giving them shielding properties against 50 Hz electric radiation (patented system).



Flex-a-ray conduits provide excellent attenuation of electric fields. They contain a layer of electrically conductive composite material, giving them shielding properties against 50 Hz electric radiation (patented system). These are ICTA-type conduits that comply with European standard EN50086-2-2.






Effects:

  • Eliminates all electric field emissions along the entire length of the circuit.



Implementation:

  • Quick to install.
  • Earthing is mandatory using a clip system (see accessories).
  • Provide one clip every 15 metres.



Contact us for more information.



Specifications:

  • Diameter: 16 mm
  • Colour: Blue
  • Weight: 6 kg
  • Reel length: 100 m



NOTE: For non-standard lengths (e.g. 50 m), please contact us.



  • Condition
    New
