NFA1000 at €2300 + boom + case + free shipping

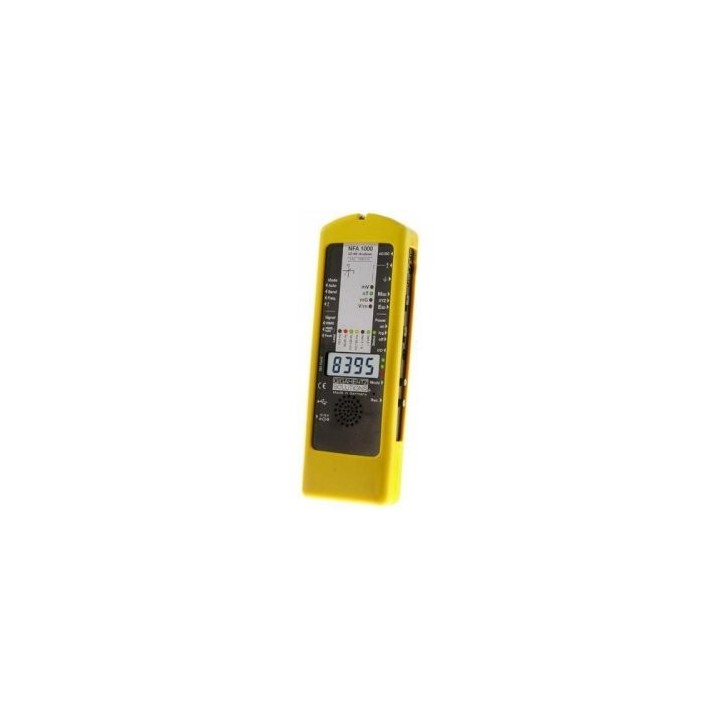

This high-end NFA 1000 3D analyser has a data logger (5Hz to 1MHz with frequency filter), SD memory card, USB port and GPS function.

It is based on a new concept designed to measure the intensity of electric and magnetic fields using a 3D probe and to make detailed recordings over a long period of time.

The numerous graphs obtained for each frequency band allow for in-depth analysis and professional presentation of your reports.

The "NFAsoft" PC software with the NFA-1000 instrument (optional) enables a GPS function (GPS data logger sold by electronic equipment distributors) with GoogleEarth®.

Works for all low and high frequencies with the NFA-1000 device connected to a professional HF device.

All you have to do is walk or drive around any location with your device in hand.

Technical specifications:

• Scales: Electrical: 0.1 to 1,999 V/m;
• Magnetic: 1 to 19.999 nT (nano tesla) Real 3D measurement of alternating electric fields in V/m with ground potential or off-potential with an optional insulating pole (PM4's) or on the optional insulating support (PM1)
• Real measurement of 3D alternating magnetic induction fields in nT or mG Measurement of body potential in mV or volts (capacitive effect of the body in electric fields)
• Directional measurement possible on the X, Y, Z axes Extended frequency analysis optimised for FFT signals above 32 KHz
• Extended measurement of peak values and true RMS measurement Voice recording of your comments in the instrument (.wav file) and correspondence in the graph obtained with the NFAsoft software for PC
• Overall measurement of the frequency band from 5 Hz to 1 MHz (All3D) or separately: - 16.6Hz, 50/60Hz, 100/120Hz, 150/180Hz, <2KHz and anything above 2KHz
• Free update of NFAsoft software and NFA-1000 instrument firmware User manual in French (translated and updated by our office by Etudes & Vie)
• Rechargeable Li-Ion battery for more than 48 hours of continuous operation.
• NFAsoft software for statistical function analysis (e.g. 95th percentile), oscilloscope function, experimental analysis of the "dirty electricity" phenomenon (contamination of electrical networks and harmonics), graph of the different recorded frequency bands
• Possibility of recording locations over several weeks Measurement of nine points on a bed and six points on a workstation in order to obtain a 2D graph of the surface
• Possibility of recording radiation in a neighbourhood by car or bicycle with a GPS data logger (accessory not included) to view the graphs in Google Earth®!
• Compensated error: -2dB
• High-frequency fields measured with the HF59B can also be recorded via a connection cable from the DC output socket to the AC/DC input of the NFA-1000 (available as an option, ref: KAB0048)
• Numerous accessories: insulating pole, PM1 insulating support, TCO3 probe, magnetostatic probe (in development), electrostatic probe (in development), etc.
