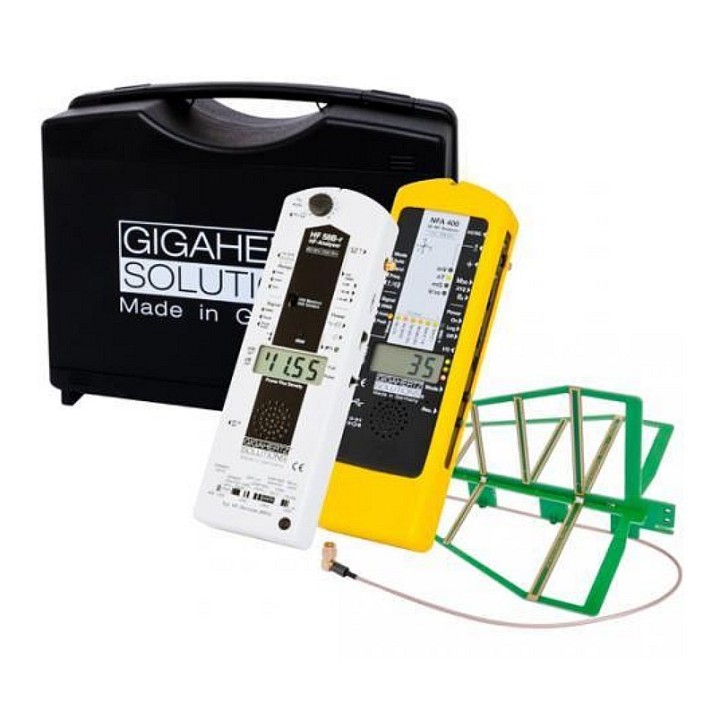

MK60-3D Gigahertz Solutions + free shipping
(Prices incl. VAT, except outside the EU)
The MK60 Kit contains the HF59B: High frequencies from 27 MHz to 2.5 GHz (with tolerance to 3.3 GHz) + RADAR optimisation, and the NFA400 with K2 case: Low frequencies; detection of electric and magnetic fields. Analysis of a frequency band from 5 Hertz to 400,000 Hertz.
The MK60 Kit contains the HF59B: High frequencies from 27 MHz to 2.5 GHz (with tolerance to 3.3 GHz) + RADAR optimisation, and the NFA400 with K2 case: Low frequencies; detection of electric and magnetic fields. Analysis of a frequency band from 5 Hertz to 400,000 Hertz
The HF39B has the same antenna as the professional series.
| Frequency band: | 27 MHz - 3.3 GHz |
| Measurement range: | Power density: 0.01 - 1999 µW/m² |
| Accuracy: | Basic accuracy and linear tolerance: +/- 4.5dB Zero (offset) and rollover verification: +/- 5 digits |
| Sensor: | Logarithmic periodic antenna |
| Audio analysis: | Identification of the nature of pulsed radiation sources (mobile phones (GSM, UMTS/G3/4G/5G), cordless phones (DECT), WLAN (Bluetooth), air traffic control radars, etc.) by means of an acoustic signal proportional to the modulated frequency. |
| Power supply: | 9-volt alkaline battery with charger, average operating time of 7 hours Low-Batt. energy level indicator on screen, auto-power-off function |
| Signal evaluation: | Display of peak values and average values (AVG) (switchable) |
| Frequently asked questions: | 2-year warranty |
| Weight: |
The NFA400:
| Frequency range: | 5 Hz to 400 KHz (compensated, better than -2 dB). Internal and adjustable frequency filter: 16.6 Hz bandpass filter, 50 Hz highpass filter, 2 kHz highpass filter for identification and evaluation of pollution sources |
| Measuring range: |
Magnetic flux density (one-dimensional): 1 - 19,990 nT Real 3D magnetic field measurement in nT Extended frequency analysis, optimised for FFT signals above 32 KHz Extended measurement of peak and true RMS levels |
| Accuracy: | +/- 2%, +/- 7 digits @ 50/60 Hz |
| Sensor: | E probe for measuring LF electric fields - B probe for measuring LF magnetic flux density |
| Audio analysis: |
An acoustic signal proportional to the field strength, similar to a "Geiger counter effect", helps to identify areas of high exposure. Recording of comments, |
| Power supply: | Rechargeable battery included in the instrument Average operating time of 7 to 8 hours Low battery indicator on the display, automatic power-off function Charger/power supply included |
| Signal evaluation: | RMS |
| Miscellaneous: |
AC and DC output NFAsoft software for analysing statistical functions, oscilloscope, electrical network contamination and harmonics, and different recorded frequency bands Ability to record locations over several weeks Possibility of recording radiation in a neighbourhood by car or bicycle with a GPS data logger (accessory not included) to view graphs in GoogleEarth® |
| Several questions: | 2-year warranty |
-
ConditionNew
