HFE59b analysis kit + free shipping

€1,540.83

(Prices incl. VAT, except outside the EU)

The Gigahertz Solutions HFE59b analysis kit measures frequencies from 27MHz - 3.3 GHz (with optional additional tolerance at 3.3 GHz), has a UBB27_G3 antenna (27 to 3300 MHz), a BP filter greater than 800 MHz, a 10dB (10x) HV10_27G3 preamplifier, a DG20 attenuator of -20dB (-100x), and a K2 case.

This kit, based on the HF59B, has a sensitivity of approx. 93dB and offers excellent dynamic response during measurements. The innovative features of the HF59B base unit in combination with the UBB27 antenna offer enormous possibilities when evaluating different frequency bands. The function and equipment of this device are tailored to the needs and practice of green building. Due to its comparatively low price, it is also often used in science and industry, especially in the EMC and product development sectors.

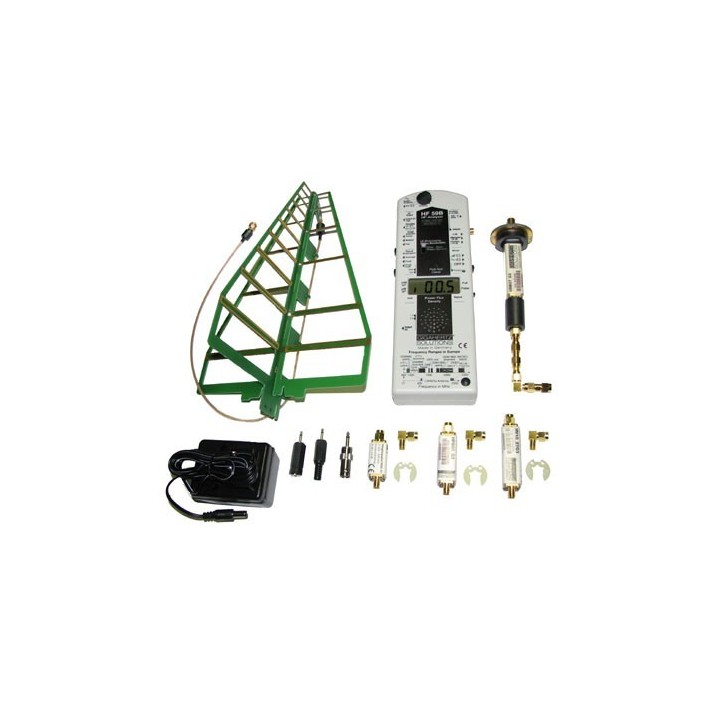

This kit contains an HF59B and a range of accessories:

  • UBB27_G3 horizontal ultra-wideband antenna from 27 MHz to 3.3 GHz (limited by the frequency response of the HF59B instrument)
  • The 800 MHz high-bandwidth filter ref. HP800_G3 allows the suppression of lower radio frequencies when measuring with a log-per antenna and the HF59B device
  • The HV10_27G3 high-frequency preamplifier increases the sensitivity level by a factor of 10 dB (i.e. 10 times) when the measured background noise is too low. This is often important for radar mode measurements or for UMTS/3G
  • The DG20_G3 attenuator allows intense fields of more than 20 dB (or a factor of 100) of 1,999 mW/m² (= 1.999 W/m²) to be measured

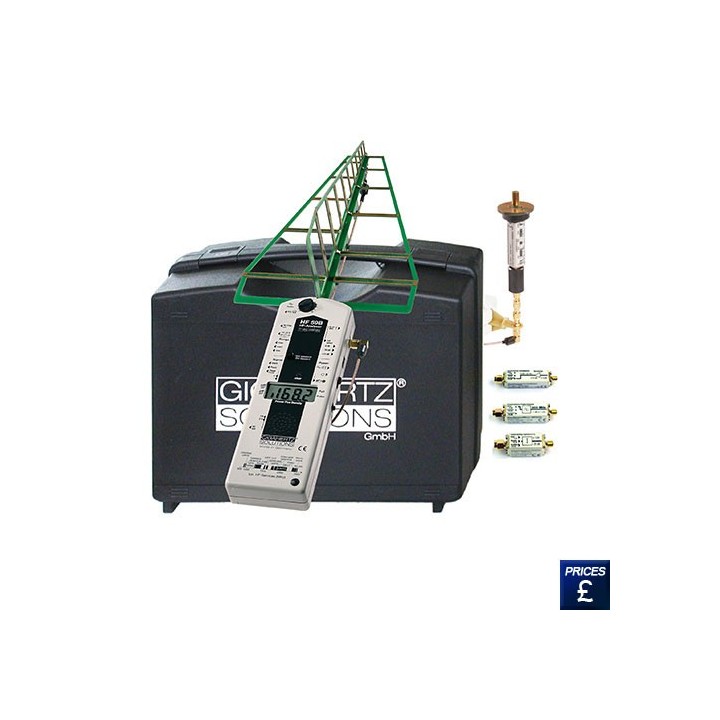

  • K2-type plastic case (not shown): made of foam for safe transport of all components. It offers enough space to store another Gigahertz Solutions measuring device (high frequency or low frequency).




Frequency range: 27 MHz - above 3.3 GHz
Measuring range: Power flux density: 0.001 - 1,999,000 µW/m² (i.e. 1 nanoW/m² nominal display resolution to 1,999 W/m², when using the included amplifier and attenuator)
Accuracy: Basic accuracy and linear tolerance: +/- 3dB Zero (offset)
and rollover verification: +/- 5 digits
Sensor: 2 antennas: Optimised
logarithmic periodic antenna with compensation on the antenna: ripple, directional reception, ground shielding, LED for contact control
UBB27_G3 antenna with lower frequency bands ("omni" character)
Audio analysis: Identification of the nature of pulsed radiation sources (mobile phones (GSM, UMTS/G3), cordless phones (DECT), WLAN (Bluetooth), air traffic control radars, etc.) by means of an acoustic signal proportional to the modulated frequency.
Power supply: Special rechargeable battery (9.6 volts) included with the instrument Average operating
time of 7 to 8 hours "Low-Batt." energy
level indicator on the screen, automatic shut-off function ("Auto-power-off")
Charger/power supply included
Signal evaluation: Display of peak and peak hold values as well as average values (AVG) (switchable) Quantitative differentiation
between pulsed and non-pulsed radiation.
Outputs: Calibrated measurement via AC output of the demodulated signal and adjustable DC output
Several questions: 2-year warranty
Weight: 2.1 kg



Contents of the box:

  • Measuring device
  • log-per. and UBB antennas
  • NiMH battery inside the device
  • Battery charger
  • HP800 filter
  • HV10 amplifier
  • DG20 attenuator
  • detailed instruction manual
  • Supplied with plastic case

  • Condition
    New
