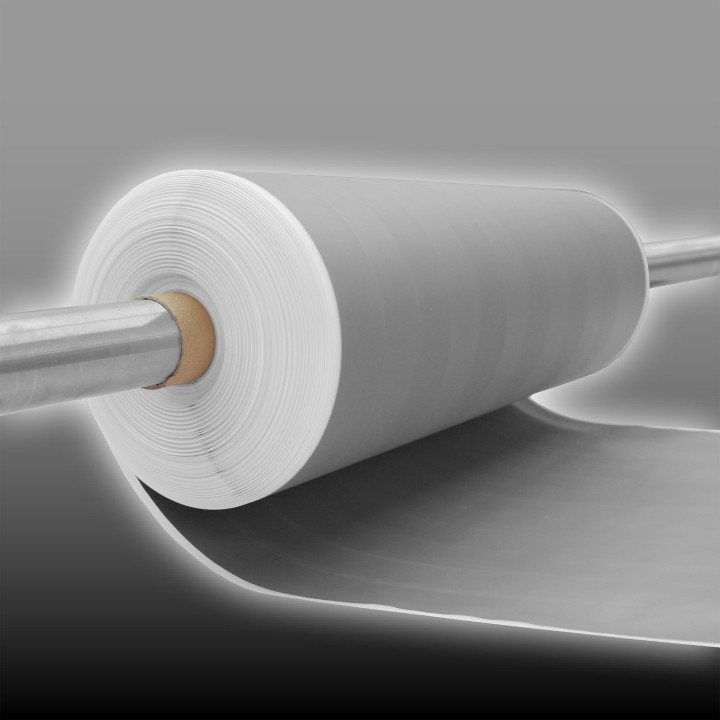

MCL61 Anti-magnetic shielding (width 61cm x 1.0m straight)

€70.83

(Prices incl. VAT, except outside the EU)

The MCL61 is a highly effective shield against low-frequency magnetic fields (electricity). It also attenuates high frequencies.

Not available

You may also like

The MCL61 is a high-performance shield against low-frequency magnetic fields (electricity). It also attenuates high frequencies.



Recommended for delicate applications such as cabling and electronics.



Sold by the linear metre!





Technical data:

  • Width 61 cm
  • Length: 1 m (sold by the linear metre)
  • Low frequency magnetic attenuation: 30 dB
  • High frequency attenuation: 75 dB
  • Weight: 265 g/m²
  • Thickness: 0.1 mm
  • Colour: silver
  • Permeability: 4 = 25,000; µ max. = 100,000
  • Polarisation saturation: 0.55 T
  • Composition: Co69, Fe4, Mo4, Nb1, Si16, B7



Tests performed according to standards:

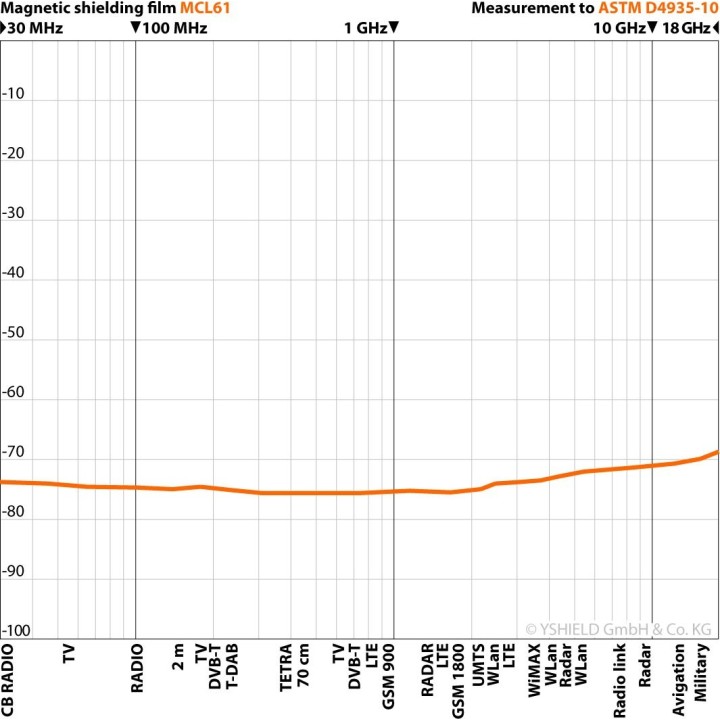

  • HF = ASTM D4935-10,
  • LF magnetic field = ASTM A698/A698M-07.
