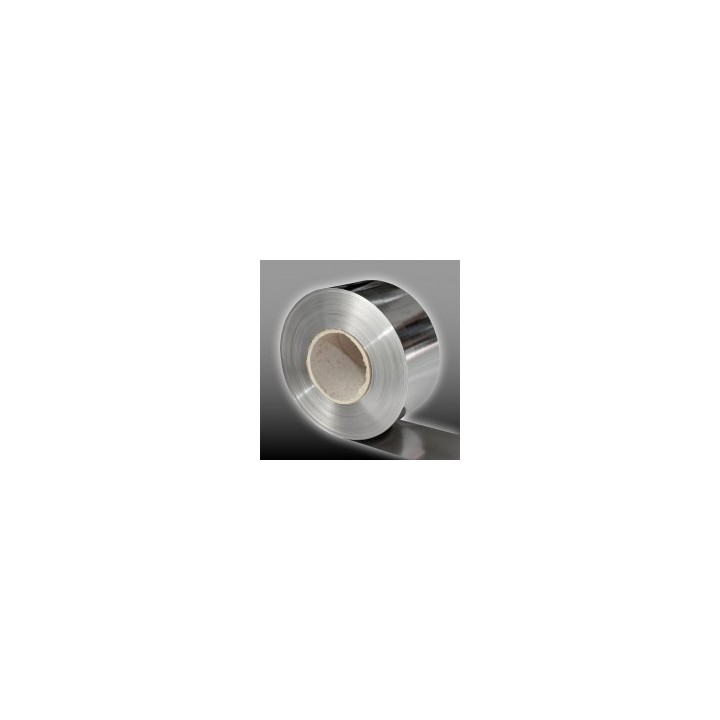

MCF5 Anti-magnetic shielding (width 5cm x 20m)

The MCF5 is a high-performance shield against low-frequency magnetic fields (electricity). It also attenuates high frequencies.

Recommended for delicate applications such as cabling and electronics.

Technical data:

• Width: 5 cm
• Length: 20 m
• Low-frequency magnetic attenuation: 30 dB
• High frequency attenuation: 75 dB
• Weight: 180 g/m²
• Thickness: 0.02 mm
• Colour: silver
• Permeability: 4 = 25,000; µ max. = 100,000
• Polarisation saturation: 0.55 T
• Composition: Co69, Fe4, Mo4, Nb1, Si16, B7

Tests performed according to standards:

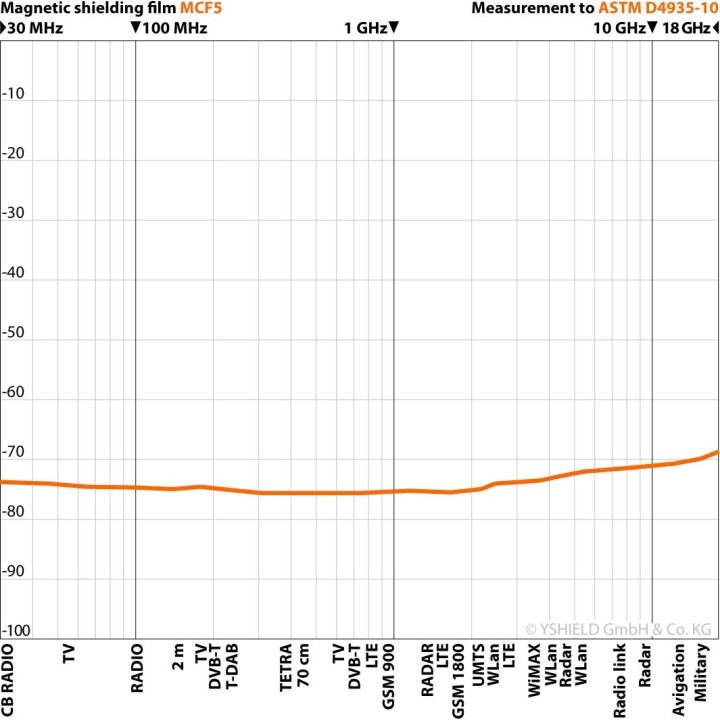

• HF = ASTM D4935-10,
• LF magnetic field = ASTM A698/A698M-07.
