CURIP70 fabric (Ripstop -70dB: EMC protection/anti-wave) - 1m² (1.5m wide x 0.66m long)

Anti-wave and EMF fabric woven in very flexible and tear-resistant Ripstop with excellent attenuation properties (-70dB) for blocking high frequencies from 0.5 to 20 GHz, providing 99.999%protection. Very resistant and flexible like fabric. Price per m² (1.5m wide x 0.66m).

Sold by the square metre in 1.5m widths, i.e. in multiples of 0.66m lengths.

Price per m² (0.66 m x 1.5 m) for 1 quantity.

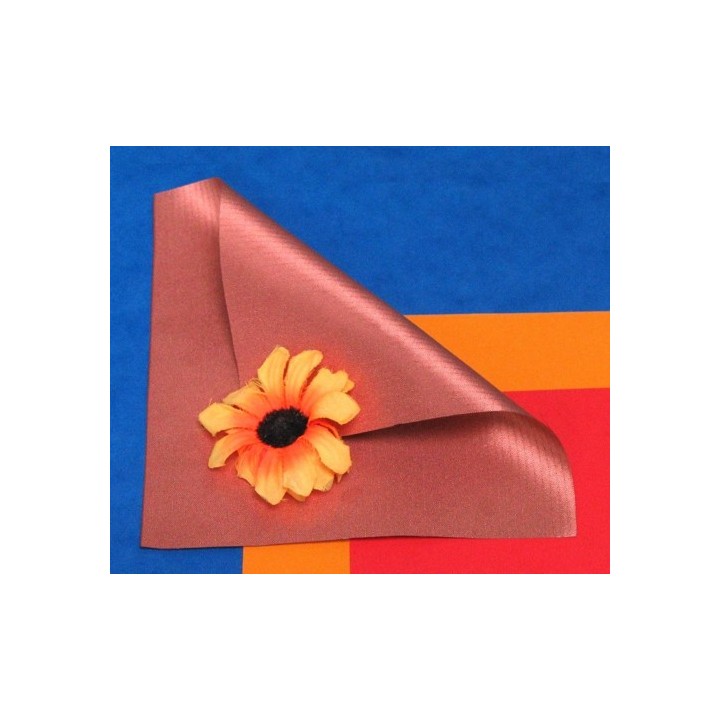

Highly resistant, flexible and tear-proof, its attenuation capacity makes it a first-rate protection against high frequencies and electric fields. Used by the military and industry in various countries, it is an essential reference. This fabric, with its Ripstop weave, is highly flexible and tear-resistant, making it suitable for a variety of applications. It can be used as an underlay for wallpaper, onto which the final wallpaper can then be applied. This fabric can be stapled or glued. Its copper composition makes it resistant to oxidation. For maximum attenuation performance, it must be earthed.

Features:

• Breathable
• Easy to handle and use
• Antistatic
• Foldable
• Tear-resistant
• Materials: polyester/copper
• Standard length: 0.7 m (1 m²), 7 m (10 m²), 36 m (50 m²)
• Width: 1.5 m
• Thickness: 0.5 mm
• Approximate weight: 30 g/m²
• We accept no liability for damage caused to persons, animals or objects as a result of incorrect application, in particular grounding and electrical installation that does not comply with DIN 57100 / VDE 0100 standards. We recommend that the electrical installation and grounding of the HFshield –100 dB non-woven fabric be checked by a qualified electrician.

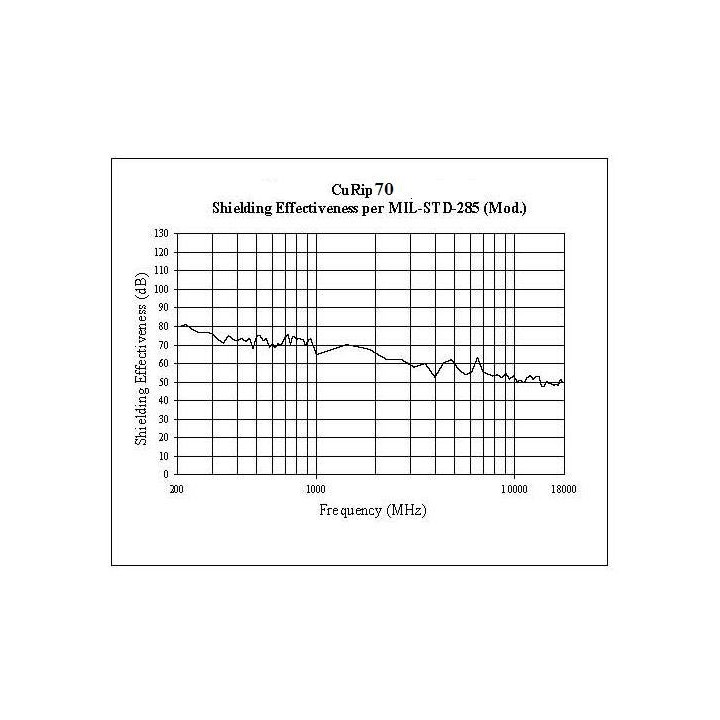

Attenuation efficiency:

• Electrostatic fields: 99% attenuation
• Electric fields, low frequencies: 99%
• High frequencies: from 110 dB for 0.5 GHz to 70 dB for 20 GHz.

Emissions affected:

• GSM/DCS/GPRS/UMTS cellular telephone network
• DECT cordless telephone
• WLAN: private wireless communication networks
• Wi-Fi
• Bluetooth
• Microwave (microwave oven leaks)
• Satellite transmission
• Radar
• WiMAX
