NICU110 fabric/wallpaper (-110dB) – RFID shielding, EMC, anti-wave – 1m² (1.5m wide x 0.66m long)

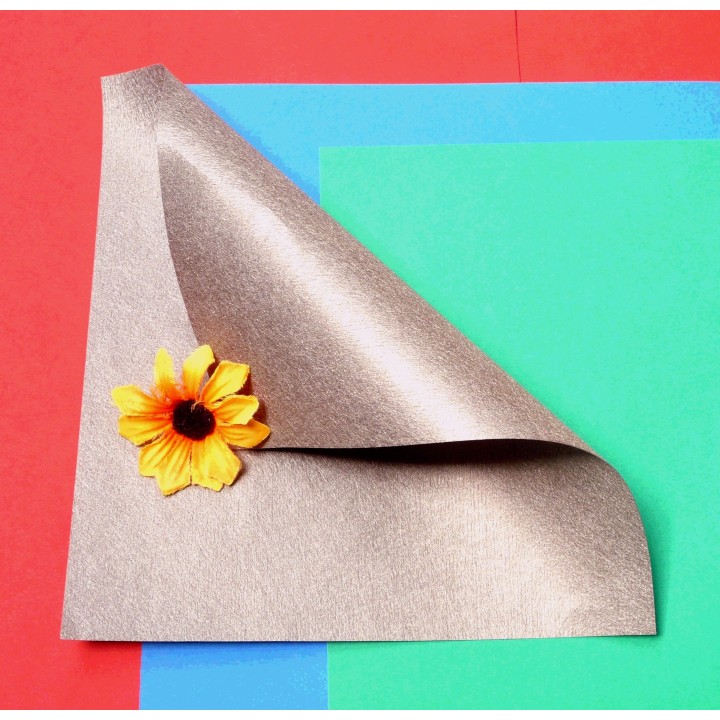

NICU110 (-110dB) fabric/wallpaper is a high-performance EMF and wave shielding fabric designed to block high frequencies. It offers excellent attenuation properties for high frequencies (0.5 to 20 GHz).

Price per m² (1.5 m wide x 0.66 m).

Sold by the square metre in 1.5 m widths, for lengths in multiples of 0.66 m.

Its attenuation capacity makes it a first-rate protection against high frequencies and electric fields. It is ideally used when affixed to walls, ceilings and floors to create anechoic chambers (rooms isolated from external electric fields and high frequencies).

Used by the military and industry in various countries, it is an essential reference for high-frequency shielding and the manufacture of Faraday cage enclosures. This fabric has a certain rigidity. It can be used as an underlay for wallpaper, onto which the final wallpaper can be applied, or directly as paintable wallpaper. This fabric can be stapled or glued. Its copper/nickel composition makes it resistant to oxidation. For maximum attenuation performance, it must be earthed.

Features:

• Anti-corrosion
• Breathable
• Easy to handle and use
• Antistatic
• Foldable
• Materials: polyester/copper/non-woven nickel/composite
• Standard length: 0.7 m (1 m²), 7 m (10 m²), 36 m (50 m²)
• Width: 1.5 m
• Thickness: 0.5 mm
• Approximate weight: 100 g/m²
• We accept no liability for damage caused to persons, animals or objects as a result of incorrect application, in particular earthing and electrical installation that does not comply with DIN 57100 / VDE 0100 standards. We recommend that the electrical installation and earthing be checked by a qualified electrician.

Attenuation efficiency:

• Electrostatic fields: 99% attenuation - Electric fields, low frequencies: 99% - High frequencies: from 110 dB for 0.5 GHz to 70 dB for 20 GHz. Emissions concerned
• GSM/DCS/GPRS/UMTS cellular telephone network
• DECT cordless telephone
• WLAN: private wireless communication networks
• Wi-Fi
• Bluetooth
• Microwave (microwave oven leaks)
• Satellite transmission
• Radar
• WiMAX
