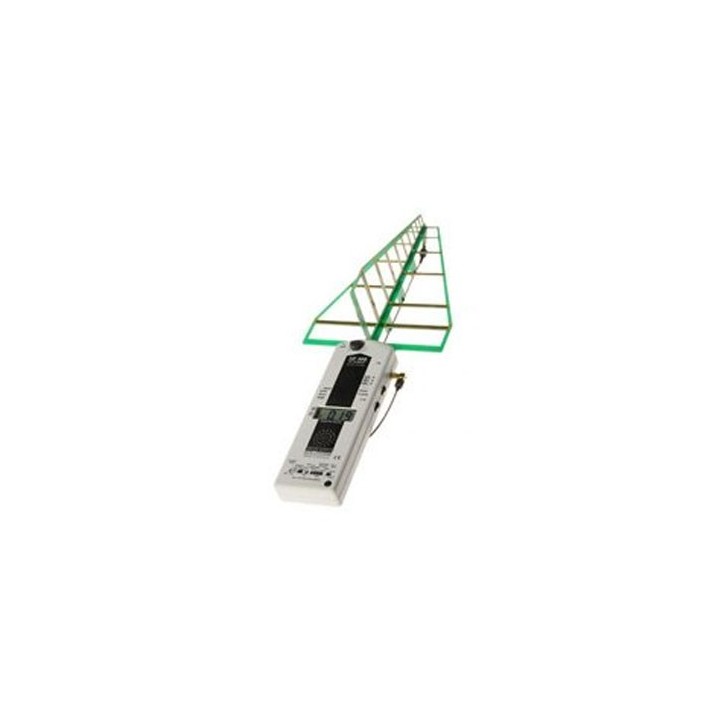

HF59b Gigahertz Solutions + free port
€960.83
(Prices incl. VAT, except outside the EU)
The HF59b measures frequencies from 27MHz to 3.3 GHz (with optional additional tolerance at 3.3 GHz) with a power range from 0.01 μW/m² to 1999 μW/m².
Démodulation du son pour analyse sonore des fréquences. Il est particulièrement populaire entre les médecins et les naturopathes, car il combine idéalement l'utilisation simple avec les mesures professionnelles. Il permet une allocation simple des fréquences de l'electrostress au courant de traction, au courant de ligne, ou même aux harmoniques artificiels, et facilite ainsi une consultation spécialement précise des mesures possibles d'assainissement et un simple contrôle de son efficacité.
| Frequency Range: | A frequency range of down to 27 MHz within the basic device - suitable for the connection of an optionally available antenna (the scope of delivery includes a compensated antenna for 800 MHz up to 2.7 or 3.3 GHz) |
| Measurement Range: | Power flux density: 0.01 - 1999 µW/m² |
| Accuracy: | Basic accuracy including linearity tolerance : +/- 3dB Zero offset and rollover +/- 5 digits |
| Sensor: | Optimised logarithmic periodic antenna with frequeny compensation directly on the antenna: Less ripple, better directionality, improved shielding vs. ground, continuous LED-monitoring of quality of connections |
| Audio Analysis: | Identification of pulsed radiation sources (mobile radio (GSM, UMTS/G3), cordless telephones (DECT), WLAN (Bluetooth), air-traffic control radar) by means of an acoustic signal proportional to the modulation frequency |
| Electric power supply: | Rechargeable highpower 9.6 Volt NiMH battery pack inside the meter, average operation time: 7 - 8 hours Low-Batt. indication, auto-power-off AC-adaptor for charging and long-term-operation included |
| Signal Rating: | Display of peak value, peak hold as well as average value (switchable) A quantitative differentiation between pulsed and un-pulsed radiation - a unique feature within the broadband measuring technology |
| Outputs: | A calibrated extra AC-measurement output for the demodulated signal, and a DC-output |
| Further Questions: | 2 years warranty |
| Weight: | 1,65 kg |
Contenu de la boite :
Appareil de mesure antenne log.-per. et son câble de raccordement Batterie Alkaline Nimh manuel d'opération détaillé-
ConditionNew
