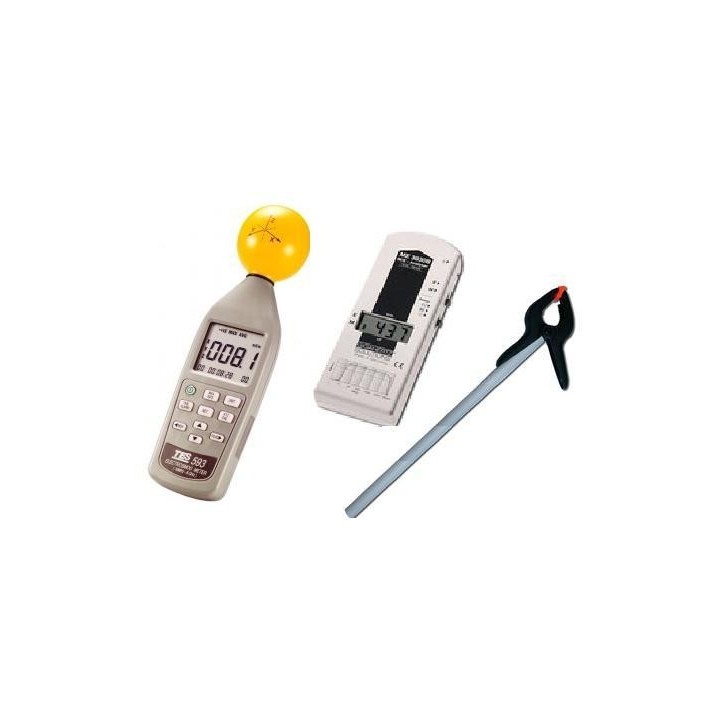

TES-593Rs + ME3030B + pole kit
€691.67
(Prices incl. VAT, except outside the EU)
The TES-593Rs and ME3030B meter kit allows easy measurement of high and low frequencies of electromagnetic waves: mobile phones, antennas, Wi-Fi, DECT, radio, radar, TV, microwave ovens, electricity and magnetic fields. (5
Hz to 100 KHz and 10 MHz to 8 GHz)
The TES-593Rs and ME3030B meter kit allows easy measurement of high and low frequencies of electromagnetic waves: mobile phones, antennas, Wi-Fi, DECT, radio, radar, TV, microwave ovens, electricity and magnetic fields. (5
Hz to 100 KHz and 10 MHz to 8 GHz)
TES-593Rs
- Calibrated device
- 5G field emission measurement
- 4-digit LCD digital display
- Wide frequency range: 10 MHz to 8.0 GHz
- Non-directional measurements (isotropic on 3 axes) of electromagnetic fields
- Units of measurement: mV/m, V/m, µA/m, mA/m, µW/m², mW/m², µW/cm²
- Measured values: instantaneous value, maximum value, average value, maximum average value
- Configurable audible and visual alarm
- High-frequency field measurement
- Memory for 99 values
- Measurement of spy surveillance cameras
- Measurement of power density of mobile phone antenna base stations
- Wireless system measurement: CW, TDMA, GSM, DECT
- Measurement of LAN (Wi-Fi) wireless systems: detection, installation
- Wireless alarm detector
- GSM mobile phone / indoor cordless phone for security levels
- Microwave oven leak detection
- Rechargeable battery power supply
- Battery life greater than 15 hours
- Dimensions 67 x 60 x 247 mm
ME3030B Gigahertz Solutions:
Frequency range: 16 - 2 kHz (compensated, better than -2 dB). Measuring range: Magnetic flux density (one-dimensional): 1 - 1999 nT
Electric field strength: 1 - 1999 V/m Accuracy: +/- 2%, +/- 20 digits @ 50/60 Hz Sensor: E probe for measuring LF electric fields - B probe for measuring LF magnetic flux density Audio analysis: An acoustic signal proportional to the field intensity, similar to a "Geiger counter effect", helps to identify areas of high exposure. Power supply: 9-volt alkaline manganese battery
Average operating time of 24 to 36 hours Low battery
indicator on the display, automatic power-off function Signal evaluation: RMS Other information: 2-year warranty Weight: 0.46 kg
Contents of the box:
TES-593Rs measuring device ME3030B measuring device Probe
-
ConditionNew
