M2A Anti-magnetic shielding (width 21 cm x 1.0 m straight)

M2A is a high-performance shielding material against low-frequency magnetic fields (electricity). It also attenuates high frequencies up to 40 GHz.

Recommended for delicate applications such as cabling and electronics.

Sold in quantities of 5 or more, i.e. 5m, then sold by the metre, i.e. 5m, 6m, 7m, etc.

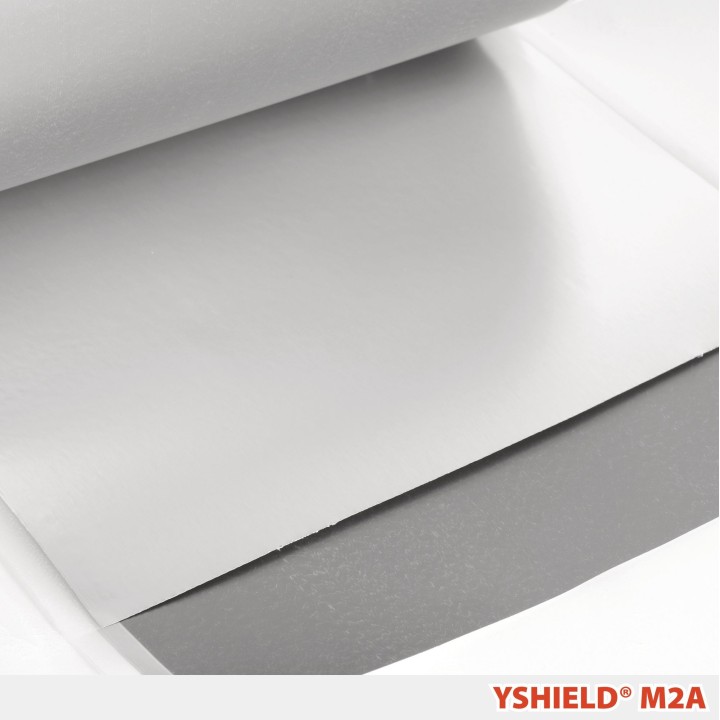

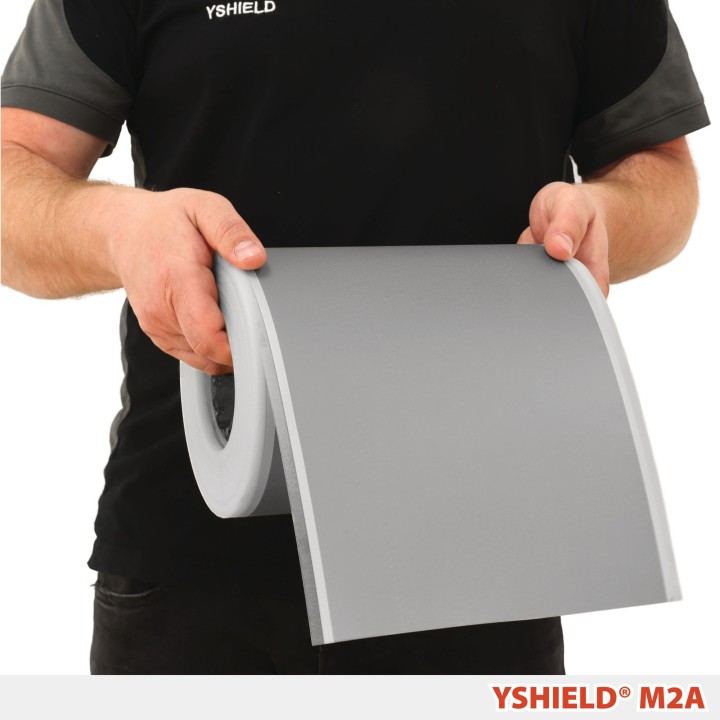

YShield M2A is a shielding film for protection against magnetic fields, particularly from electricity, while being very thin.

The YShield M2A shielding film is composed of two layers of high-tech magnetic field shielding foil.

The underside is protected by a plastic film and the top side by aluminium.

In order to effectively protect against magnetic radiation, it is essential to know where to place this film in the area to be protected. Otherwise, the result will not be adequate. Please consult us for this shielding technique.

Technical data:

• Width: 21 cm
• Length: 1 m (sold by the metre)
• Low-frequency magnetic attenuation 50Hz: 12.1 dB, 2 layers 16.3 dB, 3 layers 19.5 dB, 4 layers 21.7dB
• High frequency attenuation: 125 dB
• Weight: 265 g/m²
• Thickness: 0.12 mm
• Colour: silver
• Cutting: with scissors
• Application: Building, vehicle, electric battery, voltage transformer, electronic device, etc.
