MK30 Gigahertz Solution for €880 including VAT + free shipping
(Prices incl. VAT, except outside the EU)
MK30 Gigahertz Solution for €880 including VAT, which includes:
The HF38B: High frequencies from 700 MHz to 2.5 GHz (with optional additional tolerance to 3.3 GHz),
The ME3840B: Low frequencies; detection of electric and magnetic fields. Analysis of a frequency band from 5 Hertz to 100,000 Hertz
The set of two devices contains detectors for amateurs and offers the same analysis options as professional devices. It is the most popular kit among doctors and naturopaths who want to obtain a competent overview of the total amount of pollution, but do not have the daily practice of measuring or the time to learn the technicalities of a professional device.
The HF38B has the same antenna as the professional series.
|
Frequency range: |
700 MHz - 2.5 GHz (with additional tolerance) |
|
Measuring range: |
Power density: 0.01 - 19,990 µW/m² |
|
Accuracy: |
Basic accuracy and linear tolerance: +/- 6dB Zero (offset) |
|
Sensor: |
Optimised logarithmic periodic antenna: ripple, directional reception, shielding to ground |
|
Audio analysis: |
Identification of the nature of pulsed radiation sources (mobile phones (GSM, UMTS/G3), cordless phones (DECT), WLAN (Bluetooth), air traffic control radars, etc.) by means of an acoustic signal proportional to the modulated frequency. |
|
Power supply: |
9-volt alkaline manganese battery |
|
Signal evaluation: |
Display of peak and peak hold values as well as average values (AVG) (switchable) |
|
Several questions: |
2-year warranty |
|
Weight: |
0.58 kg |
The ME3840B is also equipped with the renowned frequency filter to enable differentiation between 50 Hz fields, railway fields and artificial harmonics produced by certain transformers and energy-saving lamps.
| Frequency range: | 5 Hz - 100 KHz (compensated, better than -2 dB). |
| Measuring range: | Magnetic flux density (one-dimensional): 1 - 1999 nT Electric field strength: 1 - 1999 V/m |
| Accuracy: | +/- 2%, +/- 20 digits @ 50/60 Hz |
| Sensor: | E probe for measuring LF electric fields - B probe for measuring LF magnetic flux density |
| Audio analysis: | An acoustic signal proportional to the field strength, similar to a "Geiger counter effect", helps to identify areas of high exposure. |
| Power supply: | 9-volt alkaline manganese battery Average operating time of 24 to 36 hours Low battery indicator on screen, automatic power-off function |
| Signal evaluation: | RMS |
| Several questions: | 2-year warranty |
| Weight: | 0.46 kg |

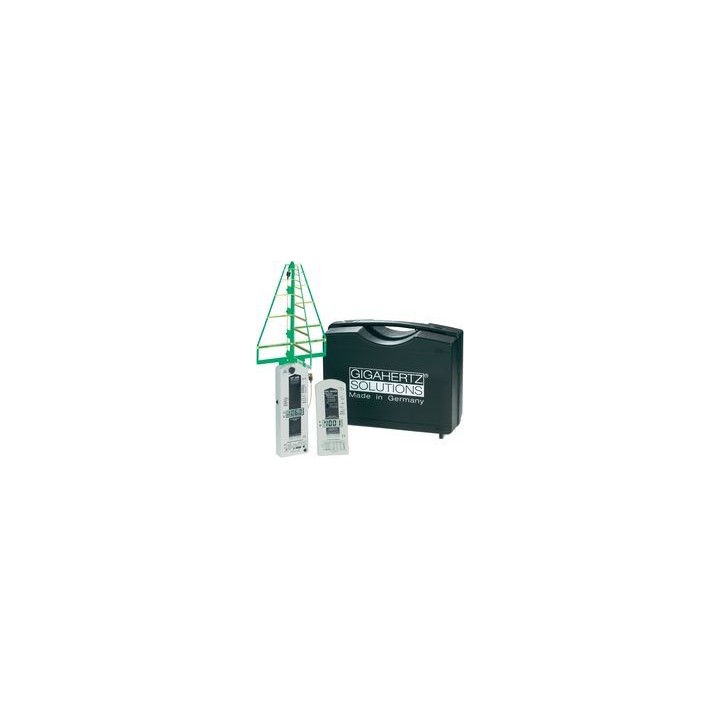

The devices are delivered in a plastic case lined with foam to ensure safe transport.
Contents of the box:
HF38B ME3840B incl. accessories carrying case-
ConditionNew
