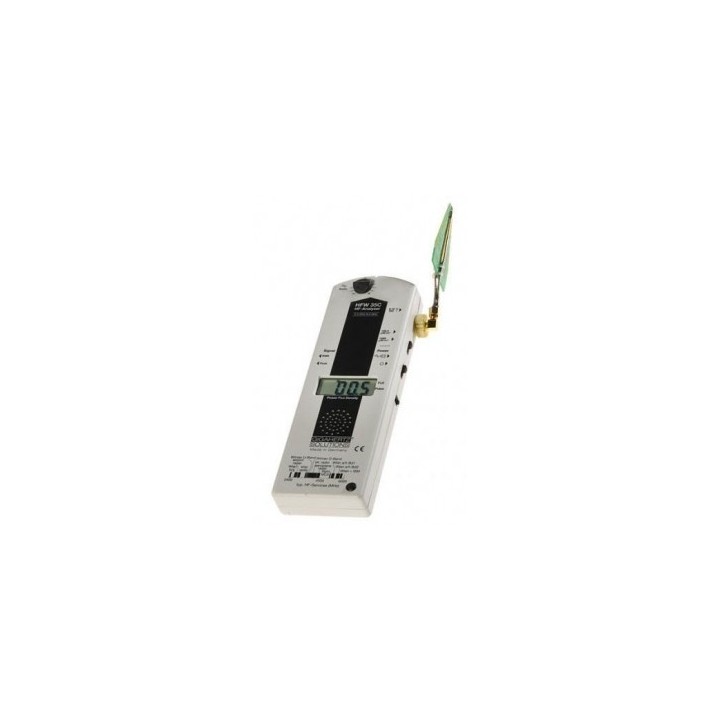

HFW35c Gigahertz at €480 including VAT + free shipping
€400.00
(Prices incl. VAT, except outside the EU)
It measures frequencies from 2.4 GHz to 6 GHz (with optional additional tolerance at 3.3 GHz), i.e. Wi-Fi, Wi-Max, radar, WLANs, etc.
It has the same advantages as the HF35C and is just as easy to use. The function and equipment of this device are tailored to the needs and practices of green building. Due to its comparatively low price, it is also often used by IT services companies, authorities and industry for displaying WLAN networks.
It includes all the functions of the HF35C and offers the following additional features:
- For measuring frequencies between 2.4 and 6 GHz
- A very special measuring instrument that can measure radiation from wireless technologies or wireless computer networks, including standards such as Bluetooth, WLAN and WiFi. It also covers the frequencies of WiMAX transmitters in operation since 2006.
- It comes with a specially shaped log-per antenna with excellent directionality (patent: AZ 10 2006 051 180.8).
- A special filter that suppresses DECT and mobile phone frequencies is integrated into the device so as not to alter the measurement of frequencies between 2.4 and 6 GHz.
- Equipped with a switch for professional devices for quantitative differentiation between pulsed and non-pulsed radiation.
| Frequency band: | 2.4 - 6.0 GHz |
| Measuring range: | Power density: 0.1 - 1999 uW/m² |
| Accuracy: | Basic accuracy and linear tolerance: +/- 6dB Zero (offset) and rollover verification: +/- 9 digits |
| Sensor: | Optimised logarithmic periodic antenna with antenna compensation and improved directional reception |
| Audio analysis: | Identification of the nature of pulsed radiation sources (mobile phones (GSM, UMTS/G3), cordless phones (DECT), WLAN (Bluetooth), air traffic control radars, etc.) by means of an acoustic signal proportional to the modulated frequency. |
| Power supply: | 9-volt alkaline manganese battery Average operating time of 6-7 hours Low battery indicator on screen, automatic power-off function |
| Signal evaluation: | Display of peak values and average values (AVG) (switchable) Quantitative differentiation between pulsed and non-pulsed radiation. |
| Weight: | 0.45 kg |
Contents of the box:
Measuring device Logarithmic antenna and connection cable Alkaline manganese battery Detailed operating instructions-
ConditionNew
