GF2 / GF3 / GF4 Yshield grounding plate (paintings, canvases, wire mesh)

GF2 / GF3 / GF4 Yshield grounding plate (paintings, canvases, wire mesh)

Installation:

Applies to paint, wall canvases, wall grids by drilling and screwing the plate into the wall, then screwing in the cable lugs (not supplied)

Features:

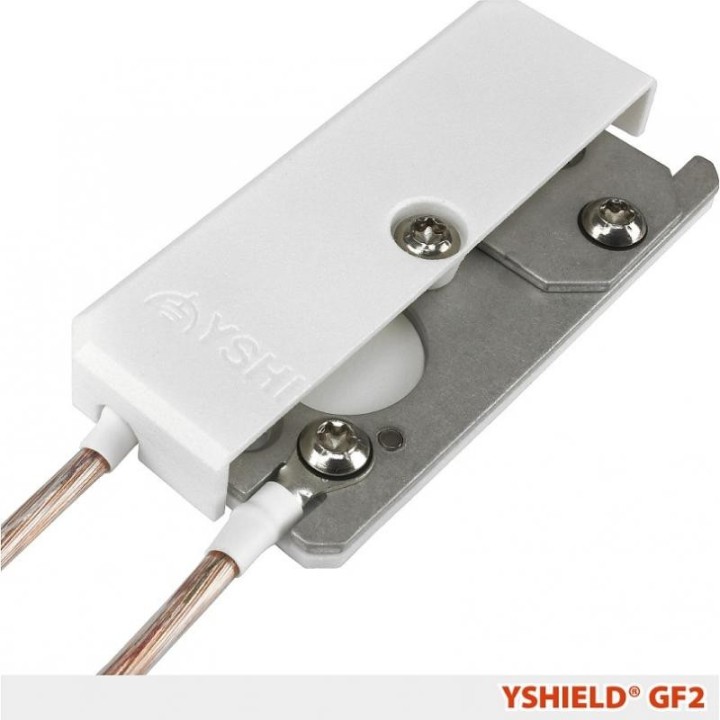

GF2:

• Aluminium plate measuring 35 x 75 x 2 mm,
• 40 x 80 x 11 mm plastic cover,
• 20 cm self-adhesive grounding strip, all screws, washers, plugs, cable lugs and a screwdriver with Torx® bits
• Connection option for 2 GL cables (not supplied).
• Single-point clamping for grounding strips

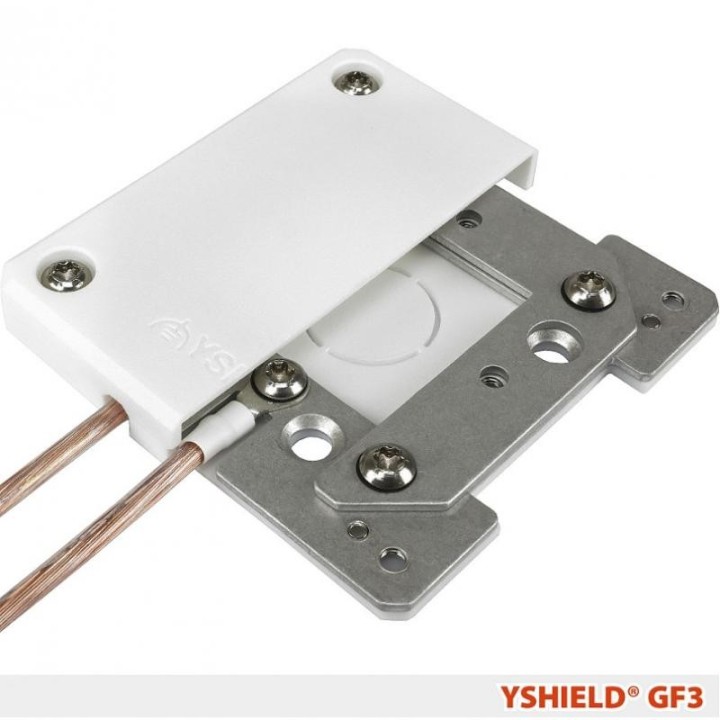

GF3:

• 75 x 75 x 2 mm aluminium plate,
• 80 x 80 x 11 mm plastic cover,
• 20 cm self-adhesive grounding strip, all screws, washers, plugs, cable lugs and a screwdriver with Torx® bits.
• Weight 110 g.
• Connection possible for 2 GL cables (not supplied).
• 3-point clamping for earthing strips

GF4:

• 115 x 115 x 2 mm aluminium plate,
• 120 x 120 x 11 mm plastic cover,
• UHU sealant, 20 cm grounding strip, all screws, washers, plugs, cable lugs and a screwdriver with Torx® bits.
• Weight 265 g.
• 3-point clamping for grounding strips.

For use with GL cable.
