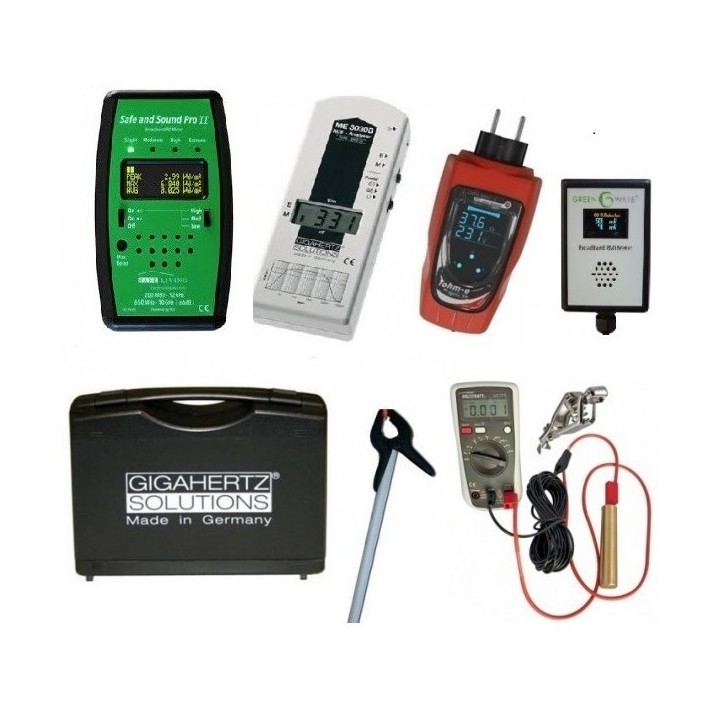

Pack PS830TEGWTI : SAFE & SOUND pro 2 + ME3830B + TOHM-E + GREENWAVE + TENSION INDUITE + K2

PS830TEGWTI Pack: SAFE & SOUND pro 2 + ME3830B + TOHM-E + GREENWAVE + INDUCTED VOLTAGE + K2

High and low frequency measurement from 5Hz to 100KHz and from 200MHz to 8GHz + electrical earth resistance + measurement of electromagnetic fields and "dirty" electricity voltage + Pro induced voltage tester

SAFE & SOUND PRO 2 (2 MHz to 8 GHz) - 5G calibrated meter.

5G/4G/3G/Wi-Fi/relay antenna waves with audio monitoring of waves and indication in µW/m².

The SAFE & SOUND PRO 2 is a measuring instrument from 200 MHz to 8GHz that is both audible for easy identification of high-frequency sources (microwaves) and visual: LCD screen display showing the maximum, instantaneous measurement, and average measured in (µW/m²).

This device is certified calibrated, which is very rare.

It covers frequency spectra such as: TETRA, GSM, DCS, RADARS, DECT, UMTS/3G, 4G/LTE, 5G, Wi-Fi (2.4 and 5.1 GHz), Wimax, etc. It has high sensitivity and is therefore very useful for people who are electrohypersensitive (EHS).

It is a wideband frequency device that covers most of the transmitters that we can find in our environment.

Technical specifications:

• Measured frequency band: 200 - 8000 MHz ±6 dB
• Measuring range: 0.001 µW/m² to 2,500,000 µW/m²
• Power supply: 2x AA alkaline or rechargeable batteries (1.2 - 1.5V)
• Current-voltage: 105 mA at 3 V
• Battery life: 10 to 15 hours
• Batteries included
• Size (mm): 17 x 11 x 4 cm (WxHxD)
• Weight: 400g

ME3830B GIGAHERTZ SOLUTIONS (dirty electricity measurement)

This is the ideal device for amateur technicians. It is particularly easy to use. It meets the requirements of habitat biology and allows you to determine the actions to be taken, the remedies and the monitoring of their effectiveness, i.e. it includes the higher frequencies produced, for example, by energy-saving lamps, current transformers, electronic light intensity dimmers, monitors,

• Frequency range: 16 Hz - 100 KHz (compensated, better than -2 dB)
• Measuring range: Magnetic flux density (one-dimensional): 1 - 1999 nT
• Electric field strength: 1 - 1999 V/m Accuracy: +/- 2%, +/- 20 digits @50/60Hz
• Sensor: E probe for measuring LF electric fields - B probe for measuring LF magnetic flux density
• Audio analysis: An acoustic signal proportional to the field intensity, similar to a "Geiger counter effect", helps to identify areas of high exposure.
• Power supply: 9-volt alkaline manganese battery Average operating time of 24 to 36 hours "Low Batt." energy level indicator on screen
• Auto-power-off function
• Signal evaluation: RMS
• Other questions: 2-year warranty
• Weight: 0.42 kg

• Measuring device
• Ground connection cable
• Alkaline manganese battery

TOHM-E

Earth loop controller/measurer.

It indicates the earth resistance in ohms, its compliance, marks the position of the phase, checks the continuity of the masses and verifies the compliance of the connection (Advantage: It is calibrated with certification!).

Best value for money and compact size.

Technical specifications:

• Earth controller/measurer using the fault loop method.
• Rotating head Display with colour-coded fault indications (red/blue).
• Phase/neutral direction indication and earth connection presence indication.
• TRMS voltage measurement.
• Measuring ranges: 0-2kOhm, 50-440V RMS.
• For TT installations only.
• Safety: CAT III 300V.
• Compliance: NF C 15-100, IEC61557-1/3, IEC61010-1
• Supplied with calibration certificate
• Dimensions (HxWxD) (mm): 170x75x63 mm Net weight: 275 g

GREENWAVE

• Measures dirty electricity in millivolts on 230V electrical cables from 3kHz to 10MHz (CPL, LINKY)
• Measures the reduction rate provided by a dirty electricity CPL filter such as DE FILTER, SPICA STRIKE, ZEN PROTECT, etc.
• Speaker allows you to hear the noise generated by dirty electricity: household appliances, electronics, LEDs, various lamps, transformers, photovoltaic inverters, PLC, etc.

Technical specifications:

• 200-250 V power supply connection
• Supplied with a 2 m removable power cord Measurement: 0-1999 mV
• Measurable frequency range: 10 kHz to over 10 MHz
• Accuracy: +/- 10%
• Case dimensions: 92 x 67 x 27 mm
• Weight: 185 g
• Warranty: 2 years

PRO body induced voltage meter

PRO induced voltage tester with brass hand electrode (voltfcraft 175) with accessories.

This set allows the measurement of induced voltage in the body in order to circumvent the effect of high and low frequency fields on the body.

The measurement is taken between an excellent earth connection and the hand, or other parts of the body where the electrode is placed.

It will enable you to set up or optimise earthing.

Theoretical recommendations on induced voltage values (millivolts): - 10 to 100 mV (0.010 to 0.100 V) slight anomaly - 100 to 1000 mV (0.100 to 1 V) significant anomaly - above 1000 mV extreme anomaly

Specifications:

CAT III 600 V - 4000 points - Auto Range - Non-contact voltage test - AC/DC current measurement range - Capacitance measurement Frequency and Duty Cycle measurement - Torch function and screen illumination - High-performance 600 V fuses - AC/DC voltage measurement AC/DC current measurement up to 10 A - Resistance measurement - Frequency and duty cycle measurement - Diode test - Acoustic continuity tester - Non-contact AC voltage test (NCV) - HOLD function Relative measurement function - Low battery indicator - Robust casing with soft rubber protection - Automatic range selection (Auto Range) - Display lighting can be deactivated - Torch function - Automatic shut-off. Supplied equipment: - VC175 multimeter - Insulated test leads - User manual in French - 9 V battery. - Solid brass manual voltage probe - 1 m connection cable. - Earth connection cable. - Connection clamp for metal pipes

K2 GIGAHERTZ SOLUTIONS case

Foam with compartment

Dimensions: 33 x 27 x 16 cm
