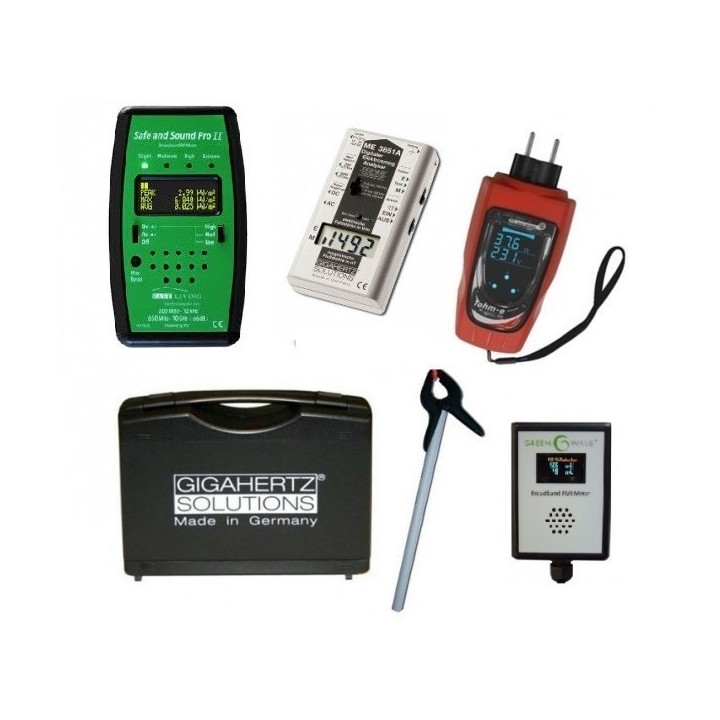

Pack PS851TEGW : SAFE & SOUND PRO 2 + ME3851A + TOHM-E + GREENWAVE + K2

AM851TEGW Pack: SAFE & SOUND PRO 2 + ME3851A + TOHM-E + GREENWAVE + K2 Case

High and low frequency measurement from 5Hz to 100KHz and from 200MHz to 8GHz + electrical earth resistance + measurement of electromagnetic fields and "dirty" electricity voltage

SAFE & SOUND PRO 2 (2 MHz to 8 GHz) - 5G calibrated meter.

5G/4G/3G/Wi-Fi/relay antenna waves with audible wave monitoring and indication in µW/m².

The SAFE & SOUND PRO 2 is a measuring instrument from 200 MHz to 8GHz that is both audible for easy identification of high-frequency sources (microwaves) and visual: LCD screen display showing the maximum, instantaneous measurement, and average measured in (µW/m²).

This device is certified calibrated, which is very rare.

It covers frequency spectrums such as: TETRA, GSM, DCS, RADARS, DECT, UMTS/3G, 4G/LTE, 5G, Wi-Fi (2.4 and 5.1 GHz), Wimax, etc.

It has high sensitivity and is therefore very useful for people who are electrohypersensitive (EHS).

It is a wideband frequency device that covers most of the transmitters that we can find in our environment.

Technical specifications:

Measured frequency band: 200 - 8000 MHz ±6 dB

Measuring range: 0.001 µW/m² to 2,500,000 µW/m²

Power supply: 2x AA alkaline or rechargeable batteries (1.2 - 1.5V)

Current-voltage: 105 mA at 3 V

Battery life: 10 to 15 hours

Batteries included

Size (mm): 17 x 11 x 4 cm (WxHxD)

Weight: 400g

ME3851A GIGAHERTZ SOLUTIONS (dirty electricity measurement)

This is the ideal device for amateur technicians. It is particularly easy to use. It meets the requirements of habitat biology and allows you to determine the actions to be taken, the remedies and the monitoring of their effectiveness, i.e. it includes the higher frequencies produced, for example, by energy-saving lamps, current transformers, electronic light intensity dimmers, monitors,

• Frequency range: 5 Hz - 100 KHz (compensated, better than -2 dB)
• Measuring range: Magnetic flux density (one-dimensional): 0.1 - 1999 nT
• Adjustable frequency filter type F1B2H31: from 5 Hz to 100 KHz - 16 Hz - from 50 to 10 KHz - from 2 KHz to 100 KHz (for dirty electricity / Linky)
• Electric field strength: 0.1 - 1999 V/m Accuracy: +/- 2%, +/- 20 digits @50/60Hz
• Sensor: E probe for measuring LF electric fields - B probe for measuring LF magnetic flux density
• Audio analysis: An acoustic signal proportional to the field strength, similar to a "Geiger counter effect", helps to identify areas of high exposure.
• Power supply: 9-volt alkaline manganese battery Average operating time of 24 to 36 hours "Low Batt." energy level indicator on screen
• Auto-power-off function
• Signal evaluation: RMS
• Other questions: 2-year warranty
• Weight: 0.42 kg

TOHM-E

Earth loop controller/measurer.

It indicates the earth resistance in Ohms, its compliance, marks the phase position, checks the continuity of the masses and verifies the compliance of the connection (Advantage: It is calibrated with certification!).

Technical specifications:

• Earth controller/meter using the fault loop method.
• Rotating head Display with colour-coded fault indications (red/blue).
• Phase/neutral direction indication and earth connection presence indication.
• TRMS voltage measurement.
• Measuring ranges: 0-2kOhm, 50-440V RMS.
• For TT installations only.
• Safety: CAT III 300V.
• Compliance: NF C 15-100, IEC61557-1/3, IEC61010-1
• Supplied with calibration certificate
• Dimensions (HxWxD) (mm): 170x75x63 mm Net weight: 275 g

GREENWAVE

• Measures dirty electricity in millivolts on 230V electrical cables from 3kHz to 10MHz (CPL, LINKY)
• Allows you to measure the reduction rate provided by a dirty electricity CPL filter such as DE FILTER, SPICA STRIKE, ZEN PROTECT, etc.

• Speaker allows you to hear the noise generated by dirty electricity: household appliances, electronics, LEDs, various lamps, transformers, photovoltaic inverters, PLC, etc.

Technical specifications:

• 200-250 V socket connection
• Supplied with a removable 2 m power cord
• Speaker for listening to interference
• Measurement: 0-1999 mV
• Measurable frequency range: 10 kHz to over 10 MHz
• Case dimensions: 92 x 67 x 27 mm
• Weight: 185 g

K2 GIGAHERTZ SOLUTIONS case

Foam with compartment

Dimensions: 33 x 27 x 16 cm
