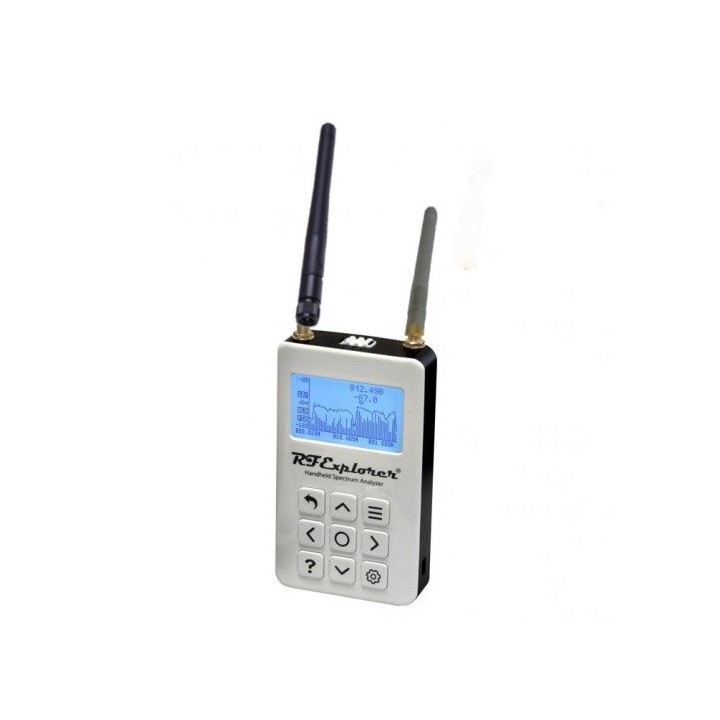

RF EXPLORER 6G COMBO Plus SLIM for €405 including VAT (4G/5G/Wi-Fi/etc. frequency analyser)

RF EXPLORER 6G COMBO Plus SLIM (spectrum analyser 50 KHz to 6.1 GHz)

Enables separate analysis of received frequency power, particularly 5G.

Overview and technical specifications:

• Spectrum analyser with peak or average mode and measurement storage
• Measurements across all bands up to 6.1 GHz without frequency jumps
• Help and programming button with 2 clicks
• Selectable 25 dB internal LNA amplifier with left connector
• Selectable 30 dB internal attenuator with left connector
• WiFi analyser for 2.4 GHz and 5 GHz bands
• 128x64 pixel graphic LCD screen
• Support included for Windows, Linux and MacOS X
• Backlit display.
• Compact size for carrying in a trouser pocket
• Metal storage box
• Internal rechargeable lithium-ion battery, 1800mA/h
• Standard 50 ohm SMA connector
• Amplitude resolution: 0.5 dBm
• Dynamic range: -125dBm to 10dBm
• Absolute maximum input power: +30dBm
• Average noise level (typical LNA): -125dBm
• Frequency stability and accuracy (typical): ±1.0 ppm
• Amplitude stability and accuracy (typical): +-3 dBm
• Frequency resolution: 1kHz
• Resolution bandwidth (RBW): automatic 2.6kHz to 600kHz
• Support included for Windows, Linux and MacOS X

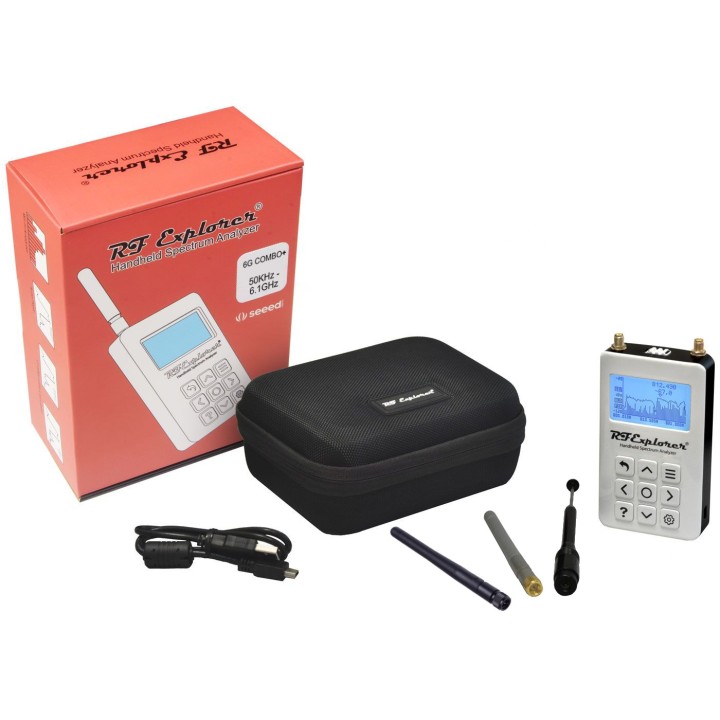

• RF Explorer 6G Combo Plus Slim spectrum analyser
• Mini USB cable for connection to computer
• A dual-band telescopic antenna for the 144/430 MHz frequency range
• One UHF antenna (for 400-960MHz frequency range)
• A dual-band 5/2.4GHz antenna
• A file with 20 to 40 presets (optional)
• A storage box
